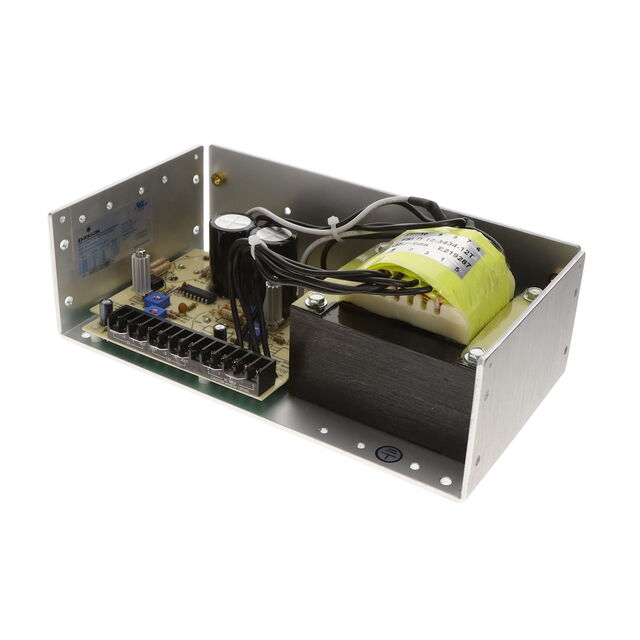

SLD-12-3434-12T

SolaHD

AC/DC CONVERTER +/-12V 82W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER +/-12V 82W

Technical Specifications

Parameters and characteristics for this part

Specification	SLD-12-3434-12T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	3.4 A
Current - Output 2	3.4 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Size / Dimension [x]	9 in
Size / Dimension [x]	228.6 mm
Size / Dimension [y]	4.87 in
Size / Dimension [y]	123.7 mm
Size / Dimension [z]	2.75 in
Size / Dimension [z]	69.9 mm
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

Part	Applications	Voltage - Output 1	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Type	Approval Agency	Mounting Type	Power (Watts)	Features	Current - Output 2	Voltage - Output 2	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]
SolaHD SLD-12-1010-12T	ITE (Commercial)	12 V	1 A	4 "	6.5 in	41.1 mm	165.1 mm	101.6 mm	1.62 in	240 VAC	100 VAC	Open Frame	CSA cURus	Chassis Mount	24 W	Adjustable Output Remote Sense	1 A	-12 V	2
SolaHD SLD-12-3015-05T	ITE (Commercial)	5 V	3 A	4.87 in	7 "	69.9 mm	177.8 mm	123.7 mm	2.75 in	240 VAC	100 VAC	Open Frame	CSA cURus	Chassis Mount	33 W	Adjustable Output Remote Sense	1.5 A	12 V	2
SolaHD SLD-12-3434-12T	ITE (Commercial)	12 V	3.4 A	4.87 in	9 in		228.6 mm		2.75 in	240 VAC	100 VAC	Open Frame	CSA cURus	Chassis Mount		Adjustable Output Remote Sense	3.4 A	-12 V	2	69.9 mm	123.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 2 Output 12V -12V 100 ~ 240 VAC Input
