TG2520SMN 38.4000M-ECGNBM0

Active

EPSON

TG2520SMN 38.4000M-ECGNBM0: VC-T

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TG2520SMN 38.4000M-ECGNBM0

Active

EPSON

TG2520SMN 38.4000M-ECGNBM0: VC-T

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.07

Description

General part information

TG2520SMN Series

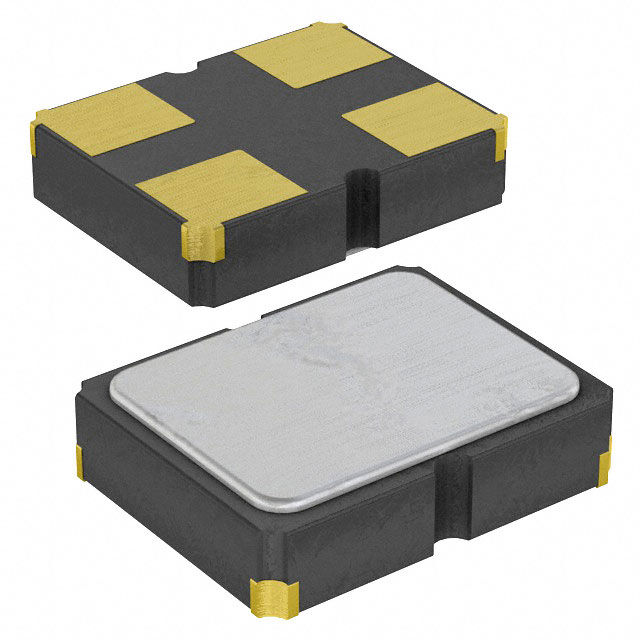

38.4 MHz VCTCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TG2520SMN 38.4000M-ECGNBM0	TG2520SMN Series

Base Resonator	Crystal	Crystal
Current - Supply (Max) [Max]	1.8 mA	1.5 - 2.1 mA
Frequency	38.4 MHz	16 - 52 MHz
Frequency Stability	500 ppb	500 ppb
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Clipped Sine Wave	Clipped Sine Wave
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	0.098 "	0.098 "
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Supplier Device Package	4-SMD (2.5x2)	4-SMD (2.5x2)
Type	VCTCXO	TCXO, VCTCXO
Voltage - Supply	1.8 V	1.8 V
Voltage - Supply	-	1.7 V
Voltage - Supply	-	3.63 V

TG2520SMN Series

TG2520SMN 30.0000M-ECGNNM0: TCXO

Part	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator	Type	Mounting Type	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Output	Frequency Stability	Voltage - Supply	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Supplier Device Package	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]
EPSON TG2520SMN 30.0000M-ECGNNM0	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb	1.8 V	0.8 mm	0.031 "	1.8 mA	4-SMD (2.5x2)	30 MHz
EPSON TG2520SMN 26.0000M-MCGNNMB	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.5 mA		26 MHz	1.7 V	3.63 V
EPSON TG2520SMN 38.4000M-MCGNNM0	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.8 mA		38.4 MHz	1.7 V	3.63 V
EPSON TG2520SMN 16.3690M-ECGNNM3	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.5 mA		16.369 MHz	1.7 V	3.63 V
EPSON TG2520SMN 27.6000M-MCGNNM5	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.8 mA		27.6 MHz	1.7 V	3.63 V
EPSON TG2520SMN 16.3680M-MCGNNM10	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.5 mA		16.368 MHz	1.7 V	3.63 V
EPSON TG2520SMN 20.0000M-MCGNNMB	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.5 mA		20 MHz	1.7 V	3.63 V
EPSON TG2520SMN 30.0000M-MCGNNM0	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.8 mA		30 MHz	1.7 V	3.63 V
EPSON TG2520SMN 19.2000M-MCGNNM0	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.5 mA		19.2 MHz	1.7 V	3.63 V
EPSON TG2520SMN 20.0000M-ECGNNM5	85 °C	-40 °C	Crystal	TCXO	Surface Mount	4-SMD, No Lead	0.098 "	2 mm	2.5 mm	0.079 in	Clipped Sine Wave	500 ppb		0.8 mm	0.031 "	1.5 mA		20 MHz	1.7 V	3.63 V
