TG2520SMN 30.0000M-MCGNNM0

Active

EPSON

TG2520SMN 30.0000M-MCGNNM0: TCXO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TG2520SMN 30.0000M-MCGNNM0

Active

EPSON

TG2520SMN 30.0000M-MCGNNM0: TCXO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TG2520SMN 30.0000M-MCGNNM0

Base Resonator	Crystal
Current - Supply (Max) [Max]	1.8 mA
Frequency	30 MHz
Frequency Stability	500 ppb
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Clipped Sine Wave

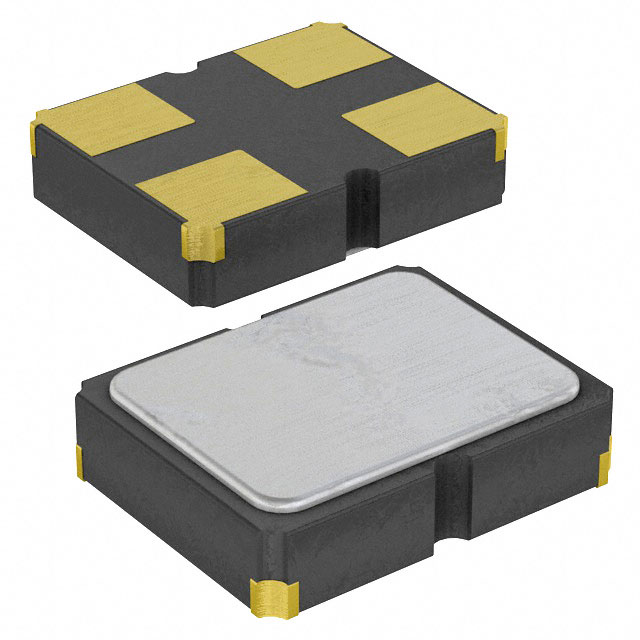

Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Type	TCXO
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.7 V

TG2520SMN Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Mounting Type	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Base Resonator	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Voltage - Supply [Min]	Voltage - Supply [Max]	Output	Type
EPSON TG2520SMN 27.6000M-MCGNNMB	0.8 mm	0.031 "	27.6 MHz	Surface Mount	1.8 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 20.0000M-ECGNNMB	0.8 mm	0.031 "	20 MHz	Surface Mount	1.5 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 26.0000M-MCGNNMB	0.8 mm	0.031 "	26 MHz	Surface Mount	1.5 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 32.0000M-ECGNNM5	0.8 mm	0.031 "	32 MHz	Surface Mount	1.8 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 24.0000M-ECGNNM5	0.8 mm	0.031 "	24 MHz	Surface Mount	1.5 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 16.3680M-ECGNNMB	0.8 mm	0.031 "	16.368 MHz	Surface Mount	1.5 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 16.3680M-MCGNNM10	0.8 mm	0.031 "	16.368 MHz	Surface Mount	1.5 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 32.0000M-TCGNNMB	0.8 mm	0.031 "	32 MHz	Surface Mount	1.8 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 52.0000M-ECGNNM0	0.8 mm	0.031 "	52 MHz	Surface Mount	2.1 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO
EPSON TG2520SMN 24.0000M-MCGNNM3	0.8 mm	0.031 "	24 MHz	Surface Mount	1.5 mA	85 °C	-40 °C	4-SMD No Lead	Crystal	0.098 "	2 mm	2.5 mm	0.079 in	500 ppb	1.7 V	3.63 V	Clipped Sine Wave	TCXO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.89
		10	$ 0.79
		50	$ 0.74
		100	$ 0.65
		500	$ 0.62
	Digi-Reel®	1	$ 0.89
		10	$ 0.79
		50	$ 0.74
		100	$ 0.65
		500	$ 0.62
	Tape & Reel (TR)	1000	$ 0.52
		3000	$ 0.50
		5000	$ 0.48
		10000	$ 0.46

Description

General part information

TG2520SMN Series

30 MHz TCXO Clipped Sine Wave Oscillator 1.7V ~ 3.63V 4-SMD, No Lead
