Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1712708 | MKDS Series |
|---|---|---|
| Color | Green | Green, Black |
| Current | 15 A | 10 - 60 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Polyamide (PA), Nylon, Glass Filled |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Levels | 1 | 1 |
| Pitch [x] | 0.2 in | 0.138 - 0.4 in |
| Pitch [x] | 5.08 mm | 3.5 - 10.16 mm |
| Positions Per Level | 8 | 2 - 11 |
| Screw Thread | M3 | M2, M3, M4 |
| Torque - Screw [Max] | 0.6 Nm | 0.25 - 1.5 Nm |
| Torque - Screw [Max] | 5.3 Lb-In | 2.2 - 13.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In | 1.9 - 10.6 Lb-In |
| Torque - Screw [Min] | 0.5 Nm | 0.22 - 1.2 Nm |
| Voltage | 300 V | 300 - 600 V |
| Wire Gauge [Max] | 30 AWG | 20 - 30 AWG |
| Wire Gauge [Min] | 12 AWG | 6 - 16 AWG |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
MKDS Series
Fixed Terminal Blocks MKDS 1/ 2-3 81 SMD B
| Part | Wire Termination | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Voltage | Number of Levels | Mounting Type | Mating Orientation | Positions Per Level | Housing Material | Wire Gauge [Max] | Wire Gauge [Min] | Screw Thread | Current | Pitch [x] | Pitch [x] | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1751264 | Screw - Rising Cage Clamp | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 300 V | 1 | Through Hole | Horizontal with Board | 4 | Polyamide (PA), Nylon | 30 AWG | 16 AWG | M2 | 10 A | 3.5 mm | 0.138 in | Green | |
Phoenix Contact 1727230 | Screw - Rising Cage Clamp | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 300 V | 1 | Surface Mount | Horizontal with Board | 2 | Polyamide (PA), Nylon, Glass Filled | 30 AWG | 16 AWG | M2 | 10 A | 3.81 mm | 0.15 in | Black | |
Phoenix Contact 1905201 | Screw - Rising Cage Clamp | 5.3 Lb-In | 0.6 Nm | 0.5 Nm | 4.4 Lb-In | 300 V | 1 | Through Hole | Horizontal with Board | 5 | Polyamide (PA), Nylon | 30 AWG | 12 AWG | M3 | 15 A | 5.08 mm | 0.2 in | Green | Interlocking (Side) |

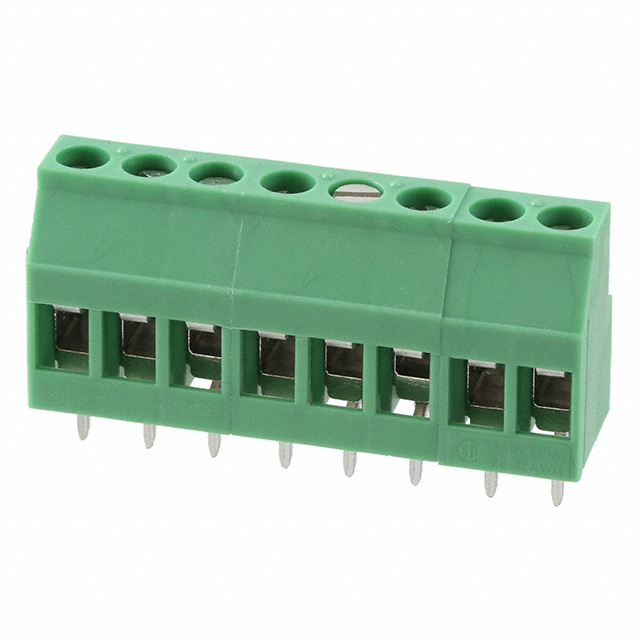

Phoenix Contact 1712708 | Screw - Rising Cage Clamp | 5.3 Lb-In | 0.6 Nm | 0.5 Nm | 4.4 Lb-In | 300 V | 1 | Through Hole | Horizontal with Board | 8 | Polyamide (PA), Nylon | 30 AWG | 12 AWG | M3 | 15 A | 5.08 mm | 0.2 in | Green | Interlocking (Side) |
Phoenix Contact 1709759 | Screw - Rising Cage Clamp | 13.3 Lb-In | 1.5 Nm | 1.2 Nm | 10.6 Lb-In | 600 V | 1 | Through Hole | Horizontal with Board | 9 | Polyamide (PA), Nylon | 20 AWG | 6 AWG | M4 | 60 A | 10.16 mm | 0.4 in | Green | Interlocking (Side) |
Phoenix Contact 1985975 | Screw - Rising Cage Clamp | 5.3 Lb-In | 0.6 Nm | 0.5 Nm | 4.4 Lb-In | 300 V | 1 | Through Hole | Horizontal with Board | 3 | Polyamide (PA), Nylon | 30 AWG | 12 AWG | M3 | 15 A | 5 mm | 0.197 in | Black | Interlocking (Side) |
Phoenix Contact 1709717 | Screw - Rising Cage Clamp | 13.3 Lb-In | 1.5 Nm | 1.2 Nm | 10.6 Lb-In | 600 V | 1 | Through Hole | Horizontal with Board | 5 | Polyamide (PA), Nylon | 20 AWG | 6 AWG | M4 | 60 A | 10.16 mm | 0.4 in | Green | Interlocking (Side) |
Phoenix Contact 1985836 | Screw - Rising Cage Clamp | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 300 V | 1 | Through Hole | Horizontal with Board | 3 | Polyamide (PA), Nylon | 30 AWG | 16 AWG | M2 | 10 A | 3.81 mm | 0.15 in | Black | |
Phoenix Contact 1751332 | Screw - Rising Cage Clamp | 2.2 Lb-In | 0.25 Nm | 0.22 Nm | 1.9 Lb-In | 300 V | 1 | Through Hole | Horizontal with Board | 11 | Polyamide (PA), Nylon | 30 AWG | 16 AWG | M2 | 10 A | 3.5 mm | 0.138 in | Green |
