1905201

Active

Phoenix Contact

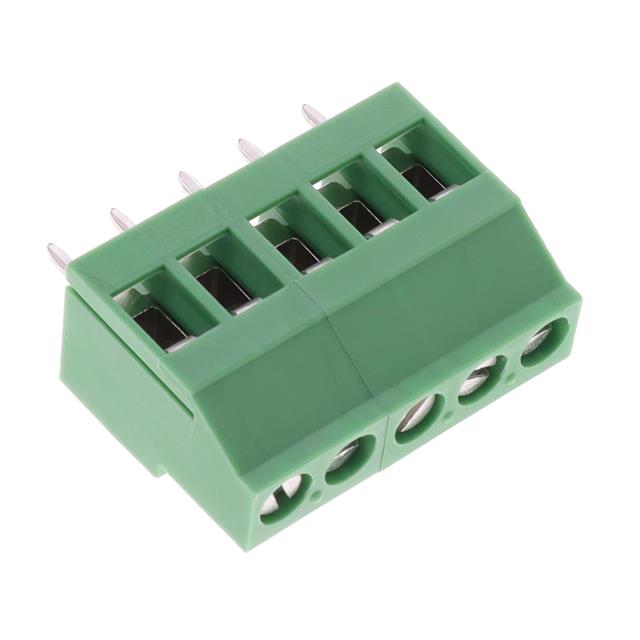

FIXED TERMINAL BLOCKS MKDS 3/ 5-5 08

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1905201

Active

Phoenix Contact

FIXED TERMINAL BLOCKS MKDS 3/ 5-5 08

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.82
Sager	N/A	50	$ 5.15
		100	$ 4.95
		150	$ 4.76
		350	$ 4.60

Description

General part information

MKDS Series

Fixed Terminal Blocks MKDS 1/ 2-3 81 SMD B

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1905201	MKDS Series

Color	Green	Green, Black
Current	15 A	10 - 60 A
Features	Interlocking (Side)	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polyamide (PA), Nylon, Glass Filled
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Levels	1	1
Pitch [x]	0.2 in	0.138 - 0.4 in
Pitch [x]	5.08 mm	3.5 - 10.16 mm
Positions Per Level	5	2 - 11
Screw Thread	M3	M2, M3, M4
Torque - Screw [Max]	0.6 Nm	0.25 - 1.5 Nm
Torque - Screw [Max]	5.3 Lb-In	2.2 - 13.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	1.9 - 10.6 Lb-In
Torque - Screw [Min]	0.5 Nm	0.22 - 1.2 Nm
Voltage	300 V	300 - 600 V
Wire Gauge [Max]	30 AWG	20 - 30 AWG
Wire Gauge [Min]	12 AWG	6 - 16 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

MKDS Series

Fixed Terminal Blocks MKDS 1/ 2-3 81 SMD B

Part	Wire Termination	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Voltage	Number of Levels	Mounting Type	Mating Orientation	Positions Per Level	Housing Material	Wire Gauge [Max]	Wire Gauge [Min]	Screw Thread	Current	Pitch [x]	Pitch [x]	Color	Features
Phoenix Contact 1751264	Screw - Rising Cage Clamp	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	300 V	1	Through Hole	Horizontal with Board	4	Polyamide (PA), Nylon	30 AWG	16 AWG	M2	10 A	3.5 mm	0.138 in	Green
Phoenix Contact 1727230	Screw - Rising Cage Clamp	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	300 V	1	Surface Mount	Horizontal with Board	2	Polyamide (PA), Nylon, Glass Filled	30 AWG	16 AWG	M2	10 A	3.81 mm	0.15 in	Black
Phoenix Contact 1905201	Screw - Rising Cage Clamp	5.3 Lb-In	0.6 Nm	0.5 Nm	4.4 Lb-In	300 V	1	Through Hole	Horizontal with Board	5	Polyamide (PA), Nylon	30 AWG	12 AWG	M3	15 A	5.08 mm	0.2 in	Green	Interlocking (Side)
Phoenix Contact 1712708	Screw - Rising Cage Clamp	5.3 Lb-In	0.6 Nm	0.5 Nm	4.4 Lb-In	300 V	1	Through Hole	Horizontal with Board	8	Polyamide (PA), Nylon	30 AWG	12 AWG	M3	15 A	5.08 mm	0.2 in	Green	Interlocking (Side)
Phoenix Contact 1709759	Screw - Rising Cage Clamp	13.3 Lb-In	1.5 Nm	1.2 Nm	10.6 Lb-In	600 V	1	Through Hole	Horizontal with Board	9	Polyamide (PA), Nylon	20 AWG	6 AWG	M4	60 A	10.16 mm	0.4 in	Green	Interlocking (Side)
Phoenix Contact 1985975	Screw - Rising Cage Clamp	5.3 Lb-In	0.6 Nm	0.5 Nm	4.4 Lb-In	300 V	1	Through Hole	Horizontal with Board	3	Polyamide (PA), Nylon	30 AWG	12 AWG	M3	15 A	5 mm	0.197 in	Black	Interlocking (Side)
Phoenix Contact 1709717	Screw - Rising Cage Clamp	13.3 Lb-In	1.5 Nm	1.2 Nm	10.6 Lb-In	600 V	1	Through Hole	Horizontal with Board	5	Polyamide (PA), Nylon	20 AWG	6 AWG	M4	60 A	10.16 mm	0.4 in	Green	Interlocking (Side)
Phoenix Contact 1985836	Screw - Rising Cage Clamp	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	300 V	1	Through Hole	Horizontal with Board	3	Polyamide (PA), Nylon	30 AWG	16 AWG	M2	10 A	3.81 mm	0.15 in	Black
Phoenix Contact 1751332	Screw - Rising Cage Clamp	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	300 V	1	Through Hole	Horizontal with Board	11	Polyamide (PA), Nylon	30 AWG	16 AWG	M2	10 A	3.5 mm	0.138 in	Green
