R161168000

Active

Radiall USA, Inc.

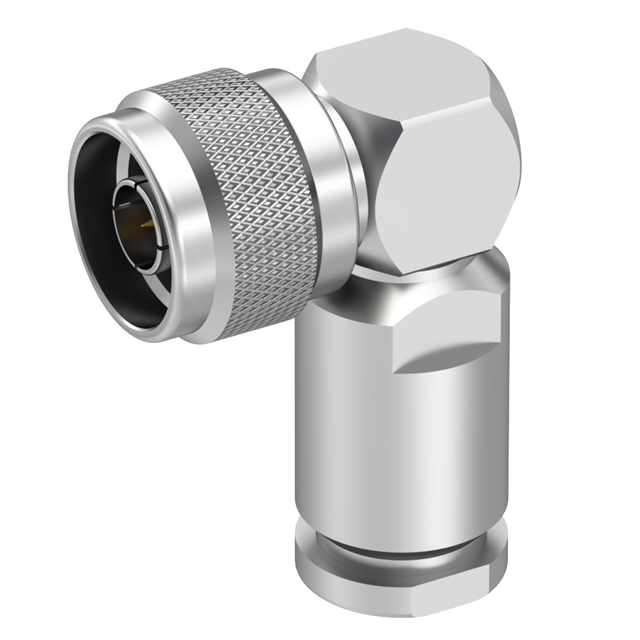

RF N CONNECTOR, MALE, CABLE MOUNT, CLAMP TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF N CONNECTOR, MALE, CABLE MOUNT, CLAMP TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R161168000

Body Material	Brass
Cable Group	214, 393, RG-213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	1400 V

Part	Mating Cycles	Impedance	Cable Group	Number of Ports	Body Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Connector Style	Connector Type	Contact Termination	Center Contact Material	Mounting Type	Frequency - Max [Max]	Voltage Rating	Center Contact Plating
Radiall USA, Inc. R161168000	500	50 Ohms	214 393 RG-213	1	Brass	Clamp	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	N Type	Male Pin Plug	Solder	Brass	Free Hanging (In-Line) Right Angle	11 GHz	1400 V	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
