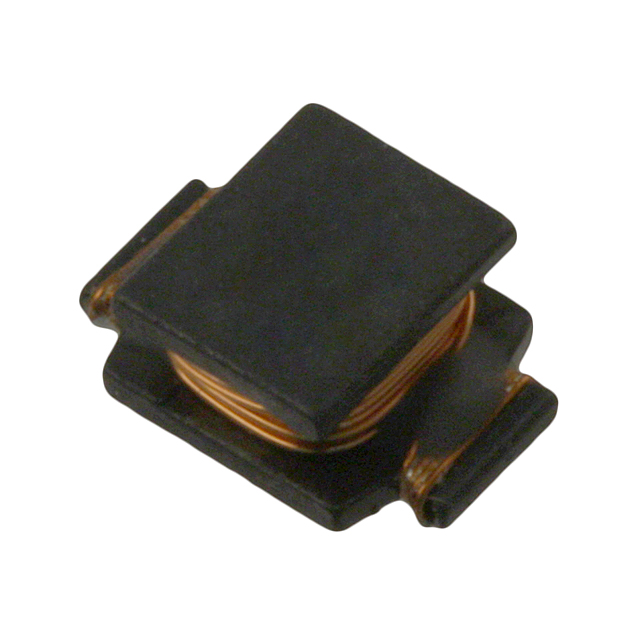

SDR0703-220KL

Active

Bourns Inc.

INDUCTOR,FERRITE,22UH,10+% TOL,10-% TOL,2618-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDR0703-220KL

Active

Bourns Inc.

INDUCTOR,FERRITE,22UH,10+% TOL,10-% TOL,2618-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR0703-220KL

Current - Saturation (Isat)	950 mA
Current Rating (Amps)	650 mA
DC Resistance (DCR) [Max]	300 mOhm
Frequency - Self Resonant	26 MHz
Height - Seated (Max) [Max] [z]	0.106 in
Height - Seated (Max) [Max] [z]	2.7 mm
Inductance	22 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	20, 2.52 MHz
Shielding	Unshielded
Size / Dimension [x]	6.5 mm
Size / Dimension [x]	0.256 "
Size / Dimension [y]	4.5 mm
Size / Dimension [y]	0.177 "
Tolerance	10 %
Type	Wirewound, Drum Core

SDR0703 Series

Part	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Inductance Frequency - Test	Material - Core	Q @ Freq	Package / Case	Frequency - Self Resonant	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Type	DC Resistance (DCR)
Bourns Inc. SDR0703-5R6ML	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	20 %	100 kHz	Ferrite	7.96 MHz 20	Nonstandard	56 MHz	2 A	105 mOhm	Surface Mount	1.4 A	125 °C	-40 °C	5.6 µH	Drum Core Wirewound
Bourns Inc. SDR0703-3R3ML	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	20 %	100 kHz	Ferrite	7.96 MHz 23	Nonstandard	65 MHz	2.35 A	75 mOhm	Surface Mount	1.65 A	125 °C	-40 °C	3.3 µH	Drum Core Wirewound
Bourns Inc. SDR0703-331KL	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	10 %	100 kHz	Ferrite	33 796 kHz	Nonstandard	6 MHz	190 mA	4.8 Ohm	Surface Mount	160 mA	125 °C	-40 °C	330 µH	Drum Core Wirewound
Bourns Inc. SDR0703-821KL	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	10 %	100 kHz	Ferrite	32 796 kHz	Nonstandard	3.6 MHz	140 mA	12 Ohm	Surface Mount	0.09 A	125 °C	-40 °C	820 µH	Drum Core Wirewound
Bourns Inc. SDR0703-6R8M	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	20 %	100 kHz	Ferrite	7.96 MHz 20	Nonstandard	45 MHz	1.9 A		Surface Mount	1.3 A	125 °C	-40 °C	6.8 µH	Drum Core Wirewound	115 mOhm
Bourns Inc. SDR0703-271KL	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	10 %	100 kHz	Ferrite	30 796 kHz	Nonstandard	7 MHz	220 mA	3.6 Ohm	Surface Mount	0.17 A	125 °C	-40 °C	270 µH	Drum Core Wirewound
Bourns Inc. SDR0703-4R7M	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	20 %	100 kHz	Ferrite	7.96 MHz 20	Nonstandard	60 MHz	2.1 A		Surface Mount	1.5 A	125 °C	-40 °C	4.7 ÁH	Drum Core Wirewound	100 mOhm
Bourns Inc. SDR0703-150KL	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	10 %	100 kHz	Ferrite	2.52 MHz 23	Nonstandard	30 MHz	1.12 A	240 mOhm	Surface Mount	750 mA	125 °C	-40 °C	15 µH	Drum Core Wirewound
Bourns Inc. SDR0703-220KL	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	10 %	100 kHz	Ferrite	2.52 MHz 20	Nonstandard	26 MHz	950 mA	300 mOhm	Surface Mount	650 mA	125 °C	-40 °C	22 µH	Drum Core Wirewound
Bourns Inc. SDR0703-151KL	Unshielded	0.106 in	2.7 mm	4.5 mm	6.5 mm	0.177 "	0.256 "	10 %	100 kHz	Ferrite	30 796 kHz	Nonstandard	9 MHz	340 mA	2 Ohm	Surface Mount	0.25 A	125 °C	-40 °C	150 µH	Drum Core Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.70
		10	$ 0.60
		25	$ 0.55
		50	$ 0.50
		100	$ 0.44
		250	$ 0.42
	Digi-Reel®	1	$ 0.70
		10	$ 0.60
		25	$ 0.55
		50	$ 0.50
		100	$ 0.44
		250	$ 0.42
	Tape & Reel (TR)	500	$ 0.36
		1000	$ 0.32
		2500	$ 0.31
		5000	$ 0.30
		12500	$ 0.29
		25000	$ 0.28
LCSC	Piece	1	$ 0.33
		200	$ 0.13
		500	$ 0.12
		1000	$ 0.12
Newark	Each (Supplied on Full Reel)	1	$ 0.35
		5000	$ 0.34
		10000	$ 0.31
		20000	$ 0.29
		30000	$ 0.27
		50000	$ 0.26

Description

General part information

SDR0703 Series

22 µH Unshielded Drum Core, Wirewound Inductor 650 mA 300mOhm Max Nonstandard
