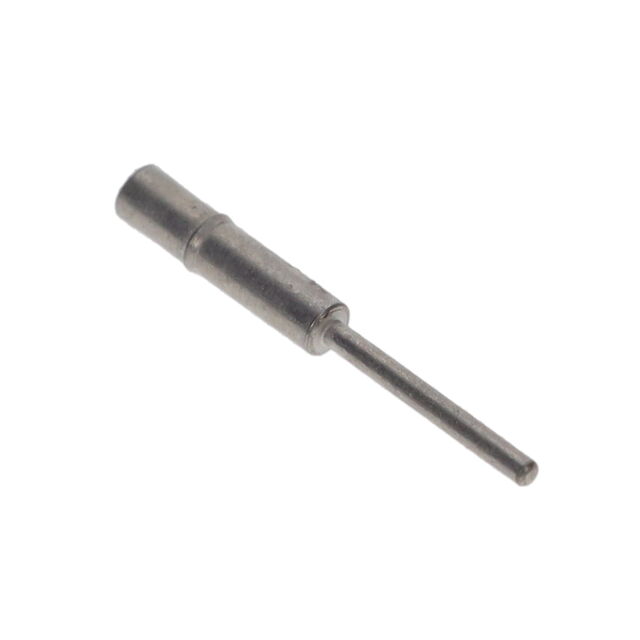

2086-0-15-01-21-14-04-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .180"

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .015-.021" .180"

Technical Specifications

Parameters and characteristics for this part

Specification	2086-0-15-01-21-14-04-0

Accepts Pin Diameter [Max]	0.022 in
Accepts Pin Diameter [Max]	0.56 mm
Accepts Pin Diameter [Min]	0.38 mm
Accepts Pin Diameter [Min]	0.015 "
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Beryllium Copper
Length - Overall [x]	0.355 in
Length - Overall [x]	9.02 mm
Mounting Hole Diameter [diameter]	0.04 in
Mounting Hole Diameter [diameter]	1.02 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.79 mm
Pin Hole Diameter [diameter]	0.031 in
Socket Depth	0.16 in
Socket Depth	4.06 mm
Tail Diameter [diameter]	0.46 mm
Tail Diameter [diameter]	0.018 in
Tail Type	Standard Tail
Termination	Press-Fit

Part	Termination	Tail Diameter [diameter]	Tail Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Finish	Contact Material
Mill-Max Manufacturing Corp. 2086-0-15-15-21-14-04-0	Press-Fit	0.46 mm	0.018 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.16 in	4.06 mm	0.79 mm	0.031 in	10 Áin	0.25 Ám	0.355 in	9.02 mm	0.04 in	1.02 mm	Standard Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 2086-0-15-01-21-14-04-0	Press-Fit	0.46 mm	0.018 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.16 in	4.06 mm	0.79 mm	0.031 in	10 Áin	0.25 Ám	0.355 in	9.02 mm	0.04 in	1.02 mm	Standard Tail	Gold	Beryllium Copper
Mill-Max Manufacturing Corp. 2086-0-15-01-21-02-04-0	Press-Fit	0.46 mm	0.018 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.16 in	4.06 mm	0.79 mm	0.031 in	100 µin	2.54 µm	0.355 in	9.02 mm	0.04 in	1.02 mm	Standard Tail	Tin-Lead	Beryllium Copper
Mill-Max Manufacturing Corp. 2086-0-15-80-21-84-04-0	Press-Fit	0.46 mm	0.018 in	0.38 mm	0.022 in	0.015 "	0.56 mm	-55 °C	125 °C	0.16 in	4.06 mm	0.79 mm	0.031 in	100 µin	2.54 µm	0.355 in	9.02 mm	0.04 in	1.02 mm	Standard Tail	Tin	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit
