3564-2
ActiveBANANA TEST CONNECTOR, JACK, 24 A, 2.5 KV, GOLD PLATED CONTACTS, RED
3564-2
ActiveBANANA TEST CONNECTOR, JACK, 24 A, 2.5 KV, GOLD PLATED CONTACTS, RED
Description
General part information
3564 Series

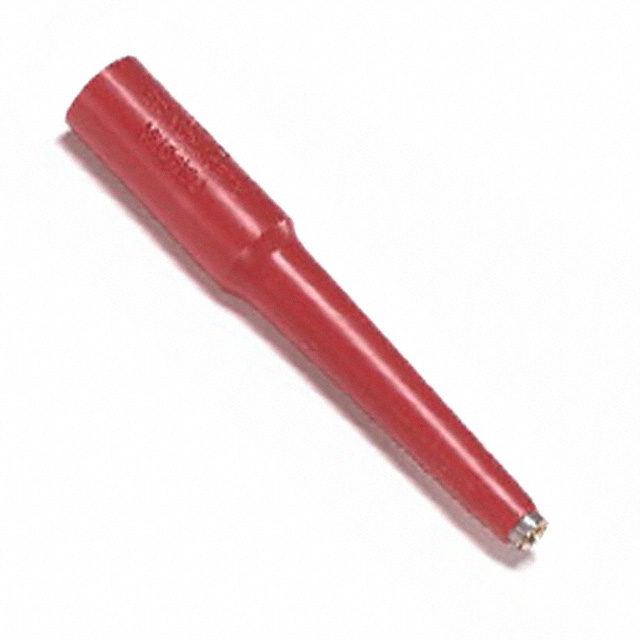

The 3564-2 is a red banana jack to 12AWG pin socket Test Adapter for rapid testing of the hard-to-get to pins of multi-pin connectors. It has bright tin-plated brass jack and a gold-plated over copper plating copper alloy socket. The flexible tip allows testing of adjacent contacts. The full insulation protects against shorting or contact damage.
Technical Specifications
Parameters and characteristics for this part
| Specification | 3564-2 |
|---|---|
| Color | Red |
| Convert From (Adapter End) ID | 0.093 " |
| Convert From (Adapter End) Type | Dia, Socket |
| Convert To (Adapter End) | Banana Jack |
