LT1210IR#TRPBF

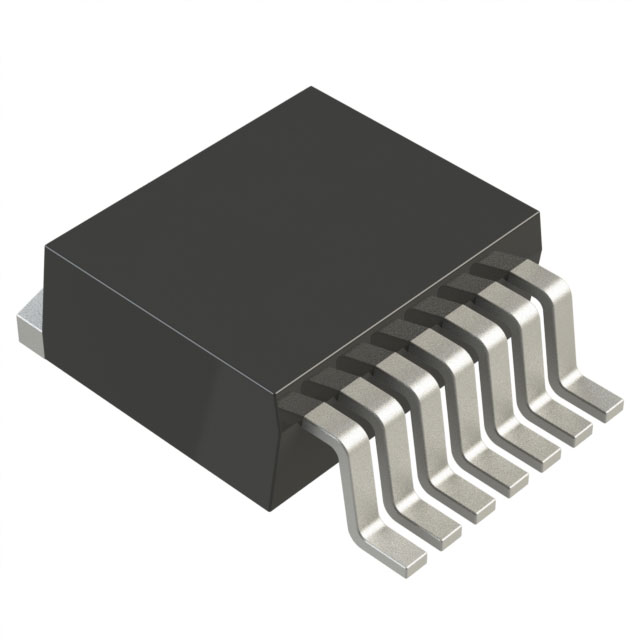

Active1.1A, 35MHZ CURRENT FEEDBACK AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
LT1210IR#TRPBF
Active1.1A, 35MHZ CURRENT FEEDBACK AMPLIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LT1210IR#TRPBF | LT1210 Series |
|---|---|---|
| -3db Bandwidth | 35 MHz | 35 MHz |
| Amplifier Type | Current Feedback | Current Feedback |
| Current - Output / Channel | 2 A | 2 A |
| Current - Supply | 50 mA | 35 - 50 mA |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 70 - 347 °F |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | TO-263-8, TO-263CA, D2PAK | Exposed Pad, 16-TSSOP, TO-220-7, TO-220-7 Formed Leads, TO-263-8, TO-263CA, D2PAK, 16-SOIC |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 0.173 " |
| Package / Case | - | 0.154 - 3.9 mm Width |
| Slew Rate | 900 V/µs | 900 V/µs |
| Supplier Device Package | DDPAK-7 | 16-TSSOP-EP, TO-220-7 Flow 6, TO-220-7 Flow 44, DDPAK-7, TO-220-7, TO-220-7 Flow 37, 16-SO |
| Voltage - Input Offset | 3 mV | 3 mV |
| Voltage - Supply Span (Max) [Max] | 30 V | 30 V |
| Voltage - Supply Span (Min) [Min] | 10 V | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Analog Devices Inc | N/A | 1 | $ 22.73 | |
| 10 | $ 16.66 | |||
| 25 | $ 15.11 | |||
| 100 | $ 13.37 | |||
| 250 | $ 12.53 | |||
| 1000 | $ 9.84 | |||
| DigiKey | N/A | 750 | $ 12.44 | |
| Digikey | Tape & Reel (TR) | 750 | $ 12.30 | |
| Mouser Electronics | N/A | 750 | $ 12.23 | |
| Richardson RFPD | N/A | 750 | $ 13.57 | |
| 1000 | $ 13.21 | |||
| 5000 | $ 12.71 | |||
| Verical | N/A | 750 | $ 14.06 | |
LT1210 Series
1.1A, 35MHz Current Feedback Amplifier
| Part | Amplifier Type | Supplier Device Package | Current - Output / Channel | Voltage - Input Offset | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply Span (Max) [Max] | Slew Rate | Mounting Type | Number of Circuits | Voltage - Supply Span (Min) [Min] | Current - Supply | -3db Bandwidth | Package / Case [x] | Package / Case | Package / Case [x] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc LT1210XFE#PBF | Current Feedback | 16-TSSOP-EP | 2 A | 3 mV | -40 °C | 347 °F | 30 V | 900 V/µs | Surface Mount | 1 | 10 V | 35 mA | 35 MHz | 4.4 mm | 16-TSSOP, Exposed Pad | 0.173 " | |
Analog Devices Inc LT1210CT7#06PBF | Current Feedback | TO-220-7 Flow 6 | 3 mV | 0 °C | 70 ░C | 30 V | 900 V/µs | Through Hole | 1 | 10 V | 35 mA | 35 MHz | TO-220-7 | ||||
Analog Devices Inc LT1210CT7#44PBF | Current Feedback | TO-220-7 Flow 44 | 3 mV | 0 °C | 70 ░C | 30 V | 900 V/µs | Through Hole | 1 | 10 V | 35 mA | 35 MHz | TO-220-7 Formed Leads | ||||
Analog Devices Inc LT1210IR#PBF | Current Feedback | DDPAK-7 | 2 A | 3 mV | -40 °C | 85 °C | 30 V | 900 V/µs | Surface Mount | 1 | 10 V | 50 mA | 35 MHz | D2PAK, TO-263-8, TO-263CA | |||
Analog Devices Inc LT1210XFE#TRPBF | Current Feedback | 16-TSSOP-EP | 2 A | 3 mV | -40 °C | 347 °F | 30 V | 900 V/µs | Surface Mount | 1 | 10 V | 35 mA | 35 MHz | 4.4 mm | 16-TSSOP, Exposed Pad | 0.173 " | |
Analog Devices Inc LT1210CT7#PBF | Current Feedback | TO-220-7 | 3 mV | 0 °C | 70 ░C | 30 V | 900 V/µs | Through Hole | 1 | 10 V | 35 mA | 35 MHz | TO-220-7 Formed Leads | ||||
Analog Devices Inc LT1210CT7#37PBF | Current Feedback | TO-220-7 Flow 37 | 2 A | 3 mV | -40 °C | 85 °C | 30 V | 900 V/µs | Through Hole | 1 | 10 V | 35 mA | 35 MHz | TO-220-7 Formed Leads | |||
Analog Devices Inc LT1210IR#TRPBF | Current Feedback | DDPAK-7 | 2 A | 3 mV | -40 °C | 85 °C | 30 V | 900 V/µs | Surface Mount | 1 | 10 V | 50 mA | 35 MHz | D2PAK, TO-263-8, TO-263CA | |||
Analog Devices Inc LT1210CS#TRPBF | Current Feedback | 16-SO | 2 A | 3 mV | 0 °C | 70 ░C | 30 V | 900 V/µs | Surface Mount | 1 | 10 V | 35 mA | 35 MHz | 16-SOIC | 0.154 in, 3.9 mm Width |
Description
General part information
LT1210 Series
The LT1210 is a current feedback amplifier with high output current and excellent large-signal characteristics. The combination of high slew rate, 1.1A output drive and ±15V operation enables the device to deliver significant power at frequencies in the 1MHz to 2MHz range. Short-circuit protection and thermal shutdown ensure the device’s ruggedness. The LT1210 is stable with large capacitive loads, and can easily supply the large currents required by the capacitive loading. A shutdown feature switches the device into a high impedance and low supply current mode, reducing dissipation when the device is not in use. For lower bandwidth applications, the supply current can be reduced with a single external resistor.The LT1210 is available in the TO-220 and DD packages for operation with supplies up to ±15V. For ±5V applications the device is also available in a low thermal resistance SO-16 package.ApplicationsCable DriversBuffersTest Equipment AmplifiersVideo AmplifiersADSL Drivers
