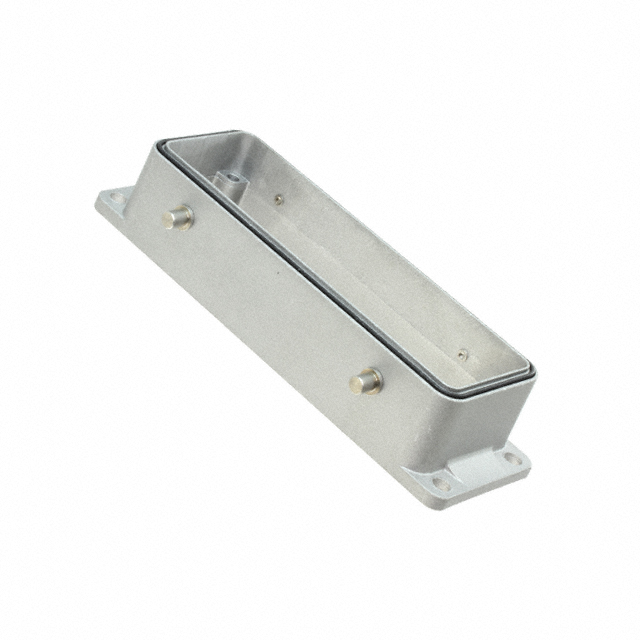

T1425240000-000
ActiveTE Connectivity AMP Connectors
H24B-AG-BO-EMC
Deep-Dive with AI
Search across all available documentation for this part.
T1425240000-000
ActiveTE Connectivity AMP Connectors
H24B-AG-BO-EMC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1425240000-000 | T142 Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount |
| Housing Color | - | Gray |
| Housing Finish | - | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood | Locking Clip (2) on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H24B | H16B, H24B, H10B |
| Size / Dimension | - | 28.9 - 29.8 mm |
| Size / Dimension | - | 44.4 - 45.7 mm |
| Size / Dimension [x] | 140 mm | 95.2 - 142.2 mm |
| Size / Dimension [x] | 5.512 " | 3.748 - 5.598 " |
| Size / Dimension [y] | 1.748 " | 1.748 - 1.799 " |
| Size / Dimension [y] | 44.4 mm | 44.4 mm |
| Size / Dimension [z] | 1.079 " | 1.079 - 1.173 " |
| Size / Dimension [z] | 27.4 mm | 27.4 mm |
| Style | Bottom Entry | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.77 | |
| 12 | $ 7.02 | |||
| 30 | $ 6.84 | |||
| 54 | $ 6.58 | |||
| 102 | $ 6.54 | |||
T142 Series
H16B-AG-BO-EMC
| Part | Style | Housing Material | Lock Location | Size | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Ingress Protection | Size / Dimension [y] | Size / Dimension [z] | Housing Finish | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1425160000-000 | Bottom Entry | Aluminum Alloy, Die Cast | Locking Clip (2) on Hood | H16B | 125 °C | -40 °C | Base - Panel Mount | 4.449 " | 28.9 mm | 113 mm | 1.138 " | 44.4 mm | 1.748 " | IP65 - Dust Tight, Water Resistant | ||||
TE Connectivity AMP Connectors T1425240000-000 | Bottom Entry | Aluminum Alloy, Die Cast | Locking Clip (2) on Hood | H24B | 125 °C | -40 °C | Base - Panel Mount | 5.512 " | 140 mm | 1.079 " | 1.748 " | IP65 - Dust Tight, Water Resistant | 44.4 mm | 27.4 mm | ||||
TE Connectivity AMP Connectors T1420100000-000 | Bottom Entry | Aluminum Alloy, Die Cast | Locking Clip (2) on Hood | H10B | 125 °C | -40 °C | Base - Panel Mount | 3.748 " | 29.8 mm | 95.2 mm | 1.173 in | 45.7 mm | 1.799 " | IP65 - Dust Tight, Water Resistant | Powder Coated | Gray | ||
TE Connectivity AMP Connectors T1420246000-000 | Bottom Entry | Aluminum Alloy, Die Cast | Locking Clip (2) on Hood | H24B | 125 °C | -40 °C | Base - Panel Mount | 5.598 in | 29.8 mm | 142.2 mm | 1.173 in | 45.7 mm | 1.799 " | IP65 - Dust Tight, Water Resistant | Powder Coated | Gray |
Description
General part information
T142 Series
Base - Panel Mount Connector Bottom Entry H24B IP65 - Dust Tight, Water Resistant
