T1425240000-000
ActiveTE Connectivity Raychem Cable Protection
H24B-AG-BO-EMC
Deep-Dive with AI
Search across all available documentation for this part.
T1425240000-000
ActiveTE Connectivity Raychem Cable Protection
H24B-AG-BO-EMC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T1425240000-000 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H24B |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [x] | 5.512 " |
| Size / Dimension [y] | 1.748 " |
| Size / Dimension [y] | 44.4 mm |
| Size / Dimension [z] | 1.079 " |
| Size / Dimension [z] | 27.4 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.77 | |
| 12 | $ 7.02 | |||
| 30 | $ 6.84 | |||
| 54 | $ 6.58 | |||
| 102 | $ 6.54 | |||
Description
General part information
T142 Series

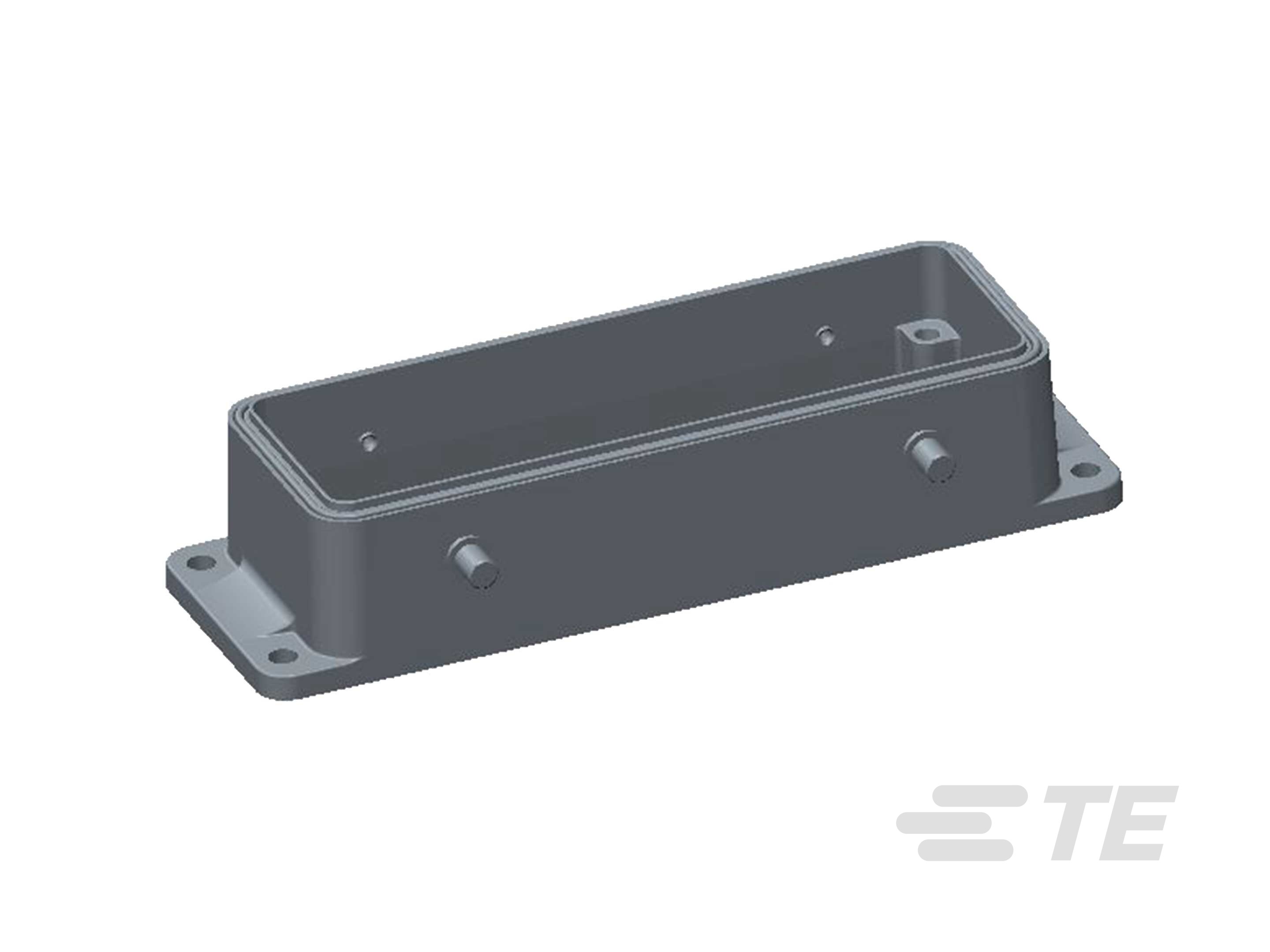

Base - Panel Mount Connector Bottom Entry H24B IP65 - Dust Tight, Water Resistant
