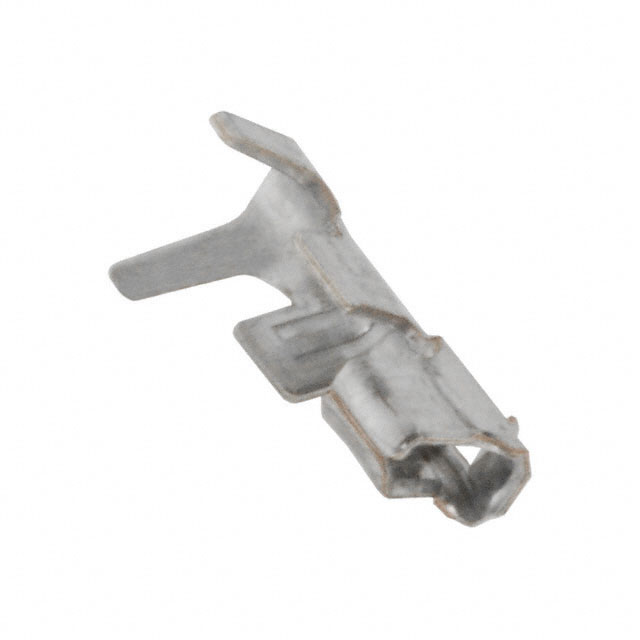

MINI-SZH-003T-P0.5
ActiveJST Sales America Inc.
CONN SOCKET 28-32AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
MINI-SZH-003T-P0.5
ActiveJST Sales America Inc.
CONN SOCKET 28-32AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MINI-SZH-003T-P0.5 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 32 AWG |
| Wire Gauge [Min] | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 0.20 | |
| 1000 | $ 0.19 | |||
| 1500 | $ 0.19 | |||
| 2500 | $ 0.18 | |||
| 3500 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 12500 | $ 0.16 | |||
| 25000 | $ 0.15 | |||
| 50000 | $ 0.15 | |||
Description
General part information
MINI-SZH Series
Socket Contact Tin 28-32 AWG Crimp
