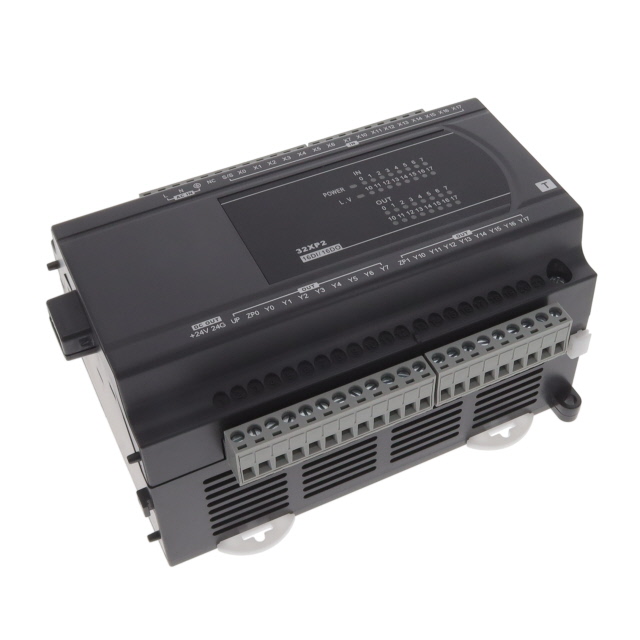

DVP32XP200T

Delta Electronics/Industrial Automation

I/O MOD 16 DIG 16 SS 100-240V

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

I/O MOD 16 DIG 16 SS 100-240V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DVP32XP200T	DVP32 Series

Approval Agency	cULus, CE	cULus, CE
Communications	-	RS-485, RS-232
Display Type	-	No Display
Expandable	-	True
For Use With/Related Products	DVP-ES2/EX2 Series	DVP-S Series, DVP-ES2/EX2 Series
Memory Size	-	10 kpts
Mounting Type	DIN Rail	DIN Rail, Chassis Mount
Number of Inputs and Type [custom]	16	16 - 32
Number of Inputs and Type [custom]	Digital	Digital
Number of Outputs and Type	Solid State	Solid State
Number of Outputs and Type	16 Outputs	16 Outputs
Number of Outputs and Type	-	16
Number of Outputs and Type	-	Relay
Termination Style	Screw Terminal	Rectangular Connector, Screw Terminal
Type	Input, Output (I/O) Module	Input Module, Input, Output (I/O) Module
Voltage - Supply	-	24 VDC
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	100 VAC	100 VAC

INPUT MOD 32 DIG 100-240V/24V

Part	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Approval Agency	For Use With/Related Products	Termination Style	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Supply	Type	Number of Outputs and Type	Number of Outputs and Type	Memory Size	Display Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Communications
Delta Electronics/Industrial Automation DVP32SM11N	Digital	32	CE, cULus	DVP-S Series	Rectangular Connector	DIN Rail	100 VAC	240 VAC	24 VDC	Input Module
Delta Electronics/Industrial Automation DVP32XP200T	Digital	16	CE, cULus	DVP-ES2/EX2 Series	Screw Terminal	DIN Rail	100 VAC	240 VAC		Input, Output (I/O) Module	Solid State	16 Outputs
Delta Electronics/Industrial Automation DVP32ES200R	Digital	16	CE, cULus			Chassis Mount, DIN Rail	100 VAC	240 VAC					10 kpts	No Display	16	Relay	RS-232, RS-485

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 178.31

General part information

Input, Output (I/O) Module DIN Rail 100 ~ 240VAC
