Specification	EEG-A2A103FHE

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	29 mOhm
Height - Seated (Max)	3.625 in
Lead Spacing	0.874 in
Lifetime	3000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	8.16 A
Size / Dimension Diameter	2 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC

EEG-A2 Series

Part	Size / Dimension Diameter	Lifetime	Package / Case	ESR (Equivalent Series Resistance)	Applications	Tolerance	Capacitance	Lead Spacing	Voltage - Rated	Ripple Current	Operating Temperature (Min)	Operating Temperature (Max)	Polarization	Mounting Type	Height - Seated (Max)
Panasonic Electronic Components EEG-A2A402FCE	2 in	3000 Hrs	Can - Screw Terminals Radial	73 mOhm	General Purpose	20 %	4000 µF	0.874 in	100 VAC/DC	6.53 A	-40 °C	85 °C	Polar	Chassis Mount	2.125 in
Panasonic Electronic Components EEG-A2W102FHE	2 in	3000 Hrs	Can - Screw Terminals Radial	221 mOhm	General Purpose	20 %	1000 µF	0.874 in	450 V	5.85 A	-40 °C	85 °C	Polar	Chassis Mount	3.625 in
Panasonic Electronic Components EEG-A2W312GPE	2.5 in	3000 Hrs	Can - Screw Terminals Radial	71 mOhm	General Purpose	20 %	3100 µF	1.126 in	450 V	11.18 A	-40 °C	85 °C	Polar	Chassis Mount	5.625 in
Panasonic Electronic Components EEG-A2E551CKE	1.375 in	3000 Hrs	Can - Screw Terminals Radial	401 mOhm	General Purpose	20 %	550 µF	0.5 in	250 V	2.91 A	-40 °C	85 °C	Polar	Chassis Mount	4.125 in
Panasonic Electronic Components EEG-A2V562HLE	3 in	3000 Hrs	Can - Screw Terminals Radial	39 mOhm	General Purpose	20 %	5600 µF	1.252 in	350 V	10.06 A	-40 °C	85 °C	Polar	Chassis Mount	4.625 in
Panasonic Electronic Components EEG-A2W222GKE	2.5 in	3000 Hrs	Can - Screw Terminals Radial	100 mOhm	General Purpose	20 %	2200 ĄF	1.126 in	450 V	9.27 A	-40 °C	85 °C	Polar	Chassis Mount	4.125 in
Panasonic Electronic Components EEG-A2W451FGE	2 in	3000 Hrs	Can - Screw Terminals Radial	491 mOhm	General Purpose	20 %	450 µF	0.874 in	450 V	2.93 A	-40 °C	85 °C	Polar	Chassis Mount	3.125 in
Panasonic Electronic Components EEG-A2E122FCE	2 in	3000 Hrs	Can - Screw Terminals Radial	184 mOhm	General Purpose	20 %	1200 µF	0.874 in	250 V	4.18 A	-40 °C	85 °C	Polar	Chassis Mount	2.125 in
Panasonic Electronic Components EEG-A2A103FHE	2 in	3000 Hrs	Can - Screw Terminals Radial	29 mOhm	General Purpose	20 %	10000 µF	0.874 in	100 VAC/DC	8.16 A	-40 °C	85 °C	Polar	Chassis Mount	3.625 in

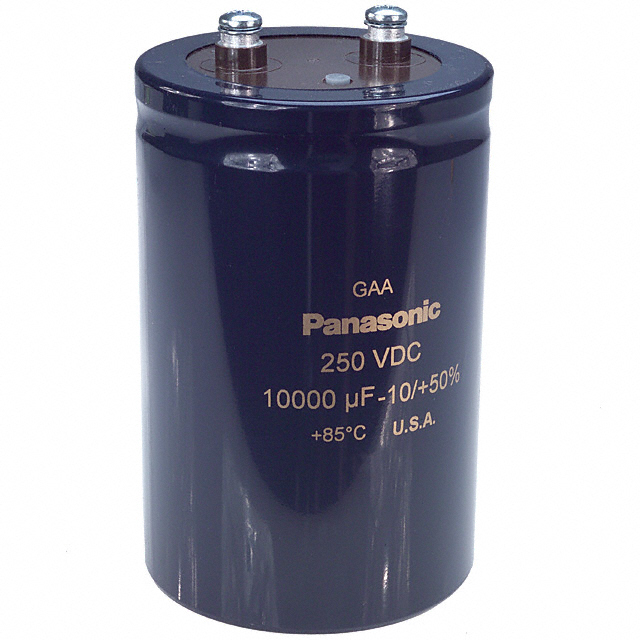

Panasonic Electronic Components EEG-A2E103HLE	3 in	3000 Hrs	Can - Screw Terminals Radial	22 mOhm	General Purpose	20 %	10000 µF	1.252 in	250 V	17.75 A	-40 °C	85 °C	Polar	Chassis Mount	4.625 in
