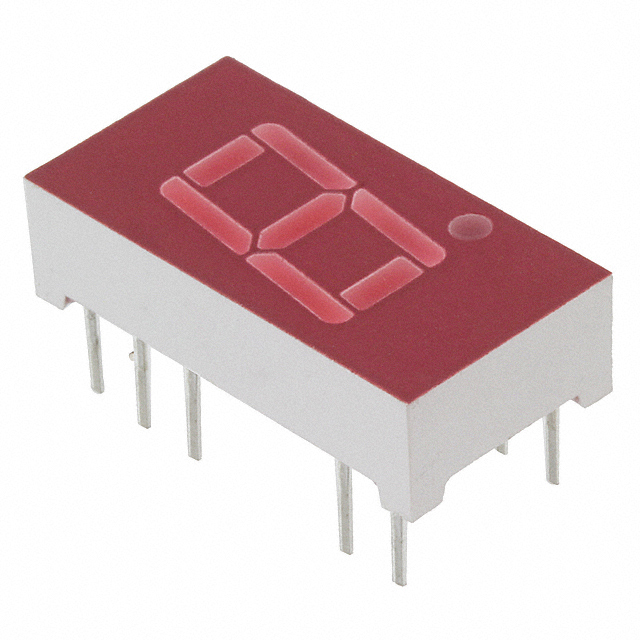

LTS-4940AHR

Active

Diodes Inc

DISPLAY 7-SEG 0.4" SGL RED 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTS-4940AHR

Active

Diodes Inc

DISPLAY 7-SEG 0.4" SGL RED 14DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTS-4940AHR

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	10.16 mm
Digit/Alpha Size [custom]	0.4 in
Display Type	7-Segment
Millicandela Rating	2.2 mcd
Number of Characters [custom]	1
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.738 "
Size / Dimension [x]	18.75 mm
Size / Dimension [y]	0.386 in
Size / Dimension [y]	9.8 mm
Size / Dimension [z]	0.2 in
Size / Dimension [z]	0.2 "
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	635 nm

LTS-4940 Series

Part	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size [custom]	Number of Characters [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Color	Common Pin	Display Type	Current - Test	Package / Case	Package / Case [y]	Package / Case [x]
Diodes Inc LTS-4940AHR	75 mw	2 V	635 nm	10.16 mm	0.4 in	1	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	2.2 mcd	Red	Common Cathode	7-Segment	20 mA	14-DIP	7.62 mm	0.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 0.46

Description

General part information

LTS-4940 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.300", 7.62mm)
