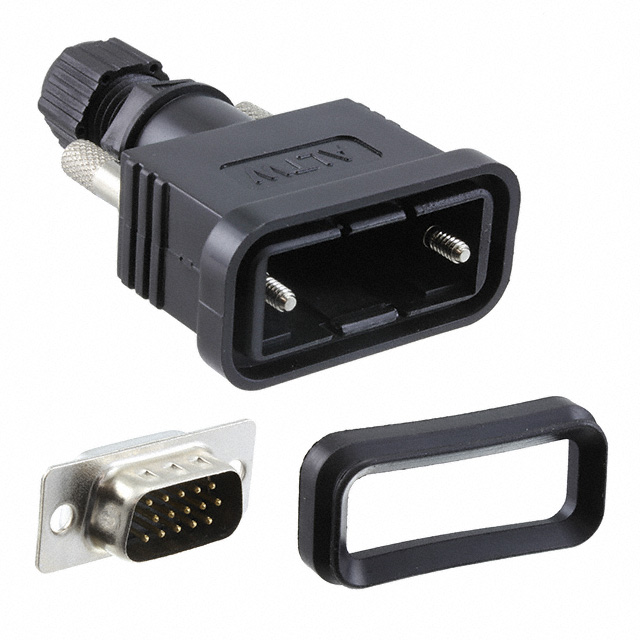

HDB-15BMMA-SL7001

Active

Amphenol LTW

CONN D-SUB HD PLUG 15POS SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB HD PLUG 15POS SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-15BMMA-SL7001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Acrylonitrile Butadiene Styrene (ABS)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

Part	Connector Style	Contact Type	Contact Finish	Dielectric Material	Flange Feature	Contact Material	Connector Type	Termination	Mounting Type	Number of Positions	Number of Rows	Features	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW HDB-15BMMA-SL7001	D-Sub High Density	Signal	Gold	Acrylonitrile Butadiene Styrene (ABS)	Housing/Shell (Unthreaded)	Copper Alloy	Male Pins Plug	Solder	Free Hanging (In-Line)	15	3	Shielded	Black	DE E	1	High Density	IP67 - Dust Tight Waterproof	2 A	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Plug, Male Pins Connector
