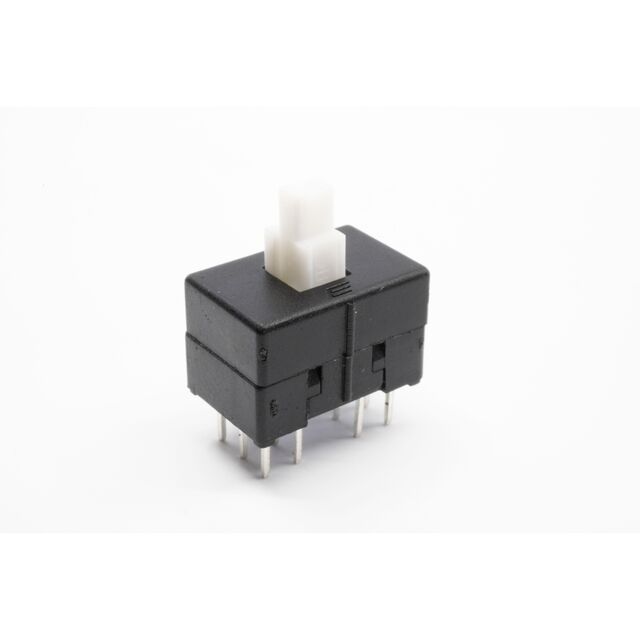

TL4201EEXA

Active

E-Switch

SWITCH PUSH 4PDT 0.1A 30V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH 4PDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Circuit	Actuator Type	Current Rating (Amps)	Termination Style	Electrical Life	Switch Function	Type	Mounting Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking
E-Switch TL4201EEZA	10000 Steps	4PDT	Plunger for Cap	100 mA	PC Pin	10000 Cycles	On-On	Standard	Through Hole	30 V	-30 ░C	85 °C	No Marking
E-Switch TL4201EEZB	10000 Steps	4PDT	Plunger for Cap	100 mA	PC Pin	10000 Cycles	On-On	Standard	Through Hole	30 V	-30 ░C	85 °C	No Marking
E-Switch TL4201EEXA	10000 Steps	4PDT	Plunger for Cap	100 mA	PC Pin	10000 Cycles	On-On	Standard	Through Hole	30 V	-30 ░C	85 °C	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.42

General part information

Pushbutton Switch 4PDT Standard Through Hole

Technical documentation and resources

No documents available
