794615-2

Active

TE Connectivity AMP Connectors

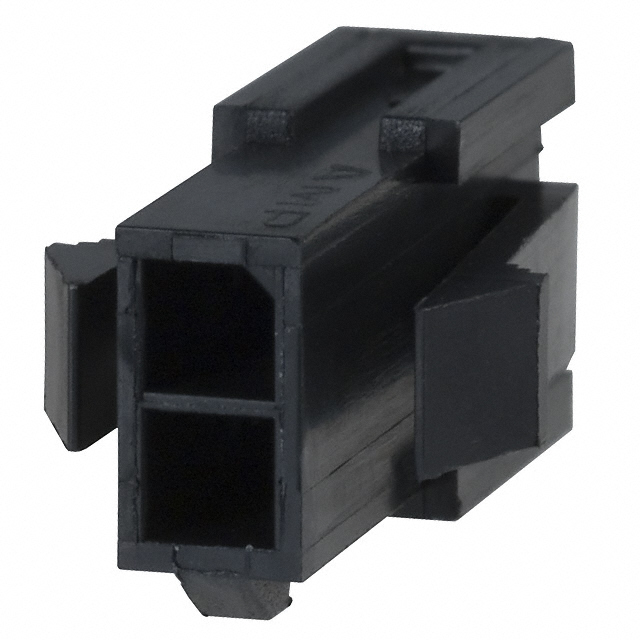

CONN PLUG HSG 2POS PANEL

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 2POS PANEL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Black

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	794615-2	794615 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 20
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	-	3 mm
Pitch	-	0.118 in
Row Spacing [x]	0.118 in	0.118 in
Row Spacing [x]	3 mm	3 mm

CONN PLUG HSG 2POS PANEL

Part	Connector Type	Fastening Type	Number of Rows	Note	Insulation Material	Number of Positions	Contact Termination	Contact Type	Color	Row Spacing [x]	Row Spacing [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 794615-2	Plug	Locking Ramp	2	Contacts Not Included	Polyamide (PA66), Nylon 6/6	2	Crimp	Male Pin	Black	0.118 in	3 mm	-40 °C	105 ░C	Panel Mount, Snap-In
TE Connectivity AMP Connectors 2-794615-0	Plug	Locking Ramp	2	Contacts Not Included	Polyamide (PA66), Nylon 6/6	20	Crimp	Male Pin	Black	0.118 in	3 mm	-40 °C	105 ░C	Panel Mount, Snap-In	3 mm	0.118 in
TE Connectivity AMP Connectors 794615-6	Plug	Locking Ramp	2	Contacts Not Included	Polyamide (PA66), Nylon 6/6	6	Crimp	Male Pin	Black	0.118 in	3 mm	-40 °C	105 ░C	Panel Mount, Snap-In	3 mm	0.118 in
TE Connectivity AMP Connectors 794615-4	Plug	Locking Ramp	2	Contacts Not Included	Polyamide (PA66), Nylon 6/6	4	Crimp	Male Pin	Black	0.118 in	3 mm	-40 °C	105 ░C	Panel Mount, Snap-In	3 mm	0.118 in
TE Connectivity AMP Connectors 3-794615-2	Plug	Locking Ramp	2	Contacts Not Included		2	Crimp	Male Pin	Black	0.118 in	3 mm			Panel Mount, Snap-In
TE Connectivity AMP Connectors 3-794615-8	Plug	Locking Ramp	2	Contacts Not Included	Nylon, Polyamide (PA)	8	Crimp	Male Pin	Black	0.118 in	3 mm	-40 °C	105 ░C	Panel Mount, Snap-In	3 mm	0.118 in
TE Connectivity AMP Connectors 1-794615-4	Plug	Locking Ramp	2	Contacts Not Included	Nylon, Polyamide (PA)	14	Crimp	Male Pin	Black	0.118 in	3 mm	-40 °C	105 ░C	Panel Mount, Snap-In	3 mm	0.118 in
