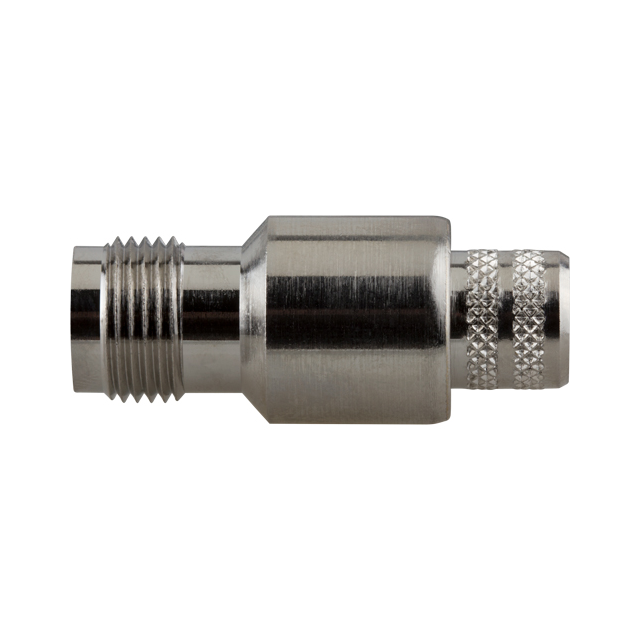

RP-1216-I

Active

RF Industries

RP TNC FEMALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

RP TNC FEMALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RP-1216-I

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Body Finish	Connector Type	Housing Color	Impedance	Connector Style	Body Material	Center Contact Plating	Number of Ports	Mounting Type	Center Contact Material	Contact Termination	Shield Termination	Dielectric Material
RF Industries RP-1216-I	Nickel	Jack Male Pin	Silver	50 Ohms	RP-TNC	Brass	Gold	1	Free Hanging (In-Line)	Brass	Crimp	Crimp	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
