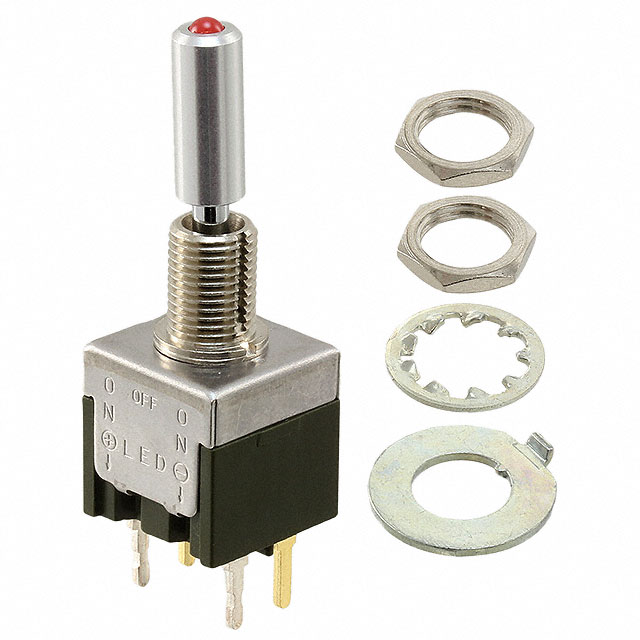

M2113LCG03

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2113LCG03

Actuator Length [x]	14.7 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2.2 VDC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Switch Function	Termination Style	Electrical Life	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Bushing Thread	Illumination Voltage (Nominal)	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Length [x]	Features	Circuit	Actuator Type	Illumination Type, Color	Current Rating (Amps)	Illumination
NKK Switches M2113LCFW01	On-Off-On	Solder Lug	25000 Steps	30 V	125 V	6.5 mm	1/4-40	1.7 VDC 2 VDC	55 °C	-10 °C	14.7 mm	Epoxy Sealed Terminals	SPDT	Standard Round	Green/Red LED	3 A 6 A	Illuminated
NKK Switches M2113LCG03	On-Off-On	PC Pin	25000 Steps	28 V	28 V	6.5 mm	1/4-40	2.2 VDC	55 °C	-10 °C	14.7 mm	Epoxy Sealed Terminals	SPDT	Standard Round	LED Red	0.4 VA	Illuminated
