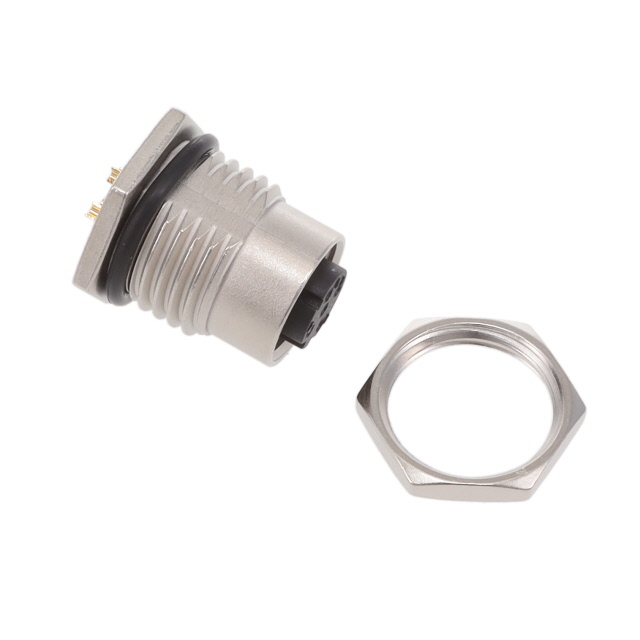

M12D-04PFFS-SH8002

Active

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	M12D-04PFFS-SH8002

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Voltage Rating	250 VAC

Part	Shell Finish	Insert Material	Color	Orientation	Ingress Protection	Primary Material	Mounting Feature	Connector Type	Contact Material	Contact Finish - Mating	Shielding	Voltage Rating	Number of Positions	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Material
Amphenol LTW M12D-04PFFS-SH8001	Nickel	Polyamide (PA) Nylon Glass Filled	Silver	D	IP68 IP69K	Metal	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Copper Alloy	Gold	Shielded	250 VAC	4	M12-4	-40 °C	105 ░C	4 A	Zinc Alloy
Amphenol LTW M12D-04PFFS-SH8002	Nickel	Polyamide (PA) Nylon Glass Filled	Silver	D	IP67/IP68 - Dust Tight Waterproof	Metal	Bulkhead - Rear Side Nut	Receptacle Female Sockets	Copper Alloy	Gold	Shielded	250 VAC	4	M12-4	-40 °C	105 ░C	4 A	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
