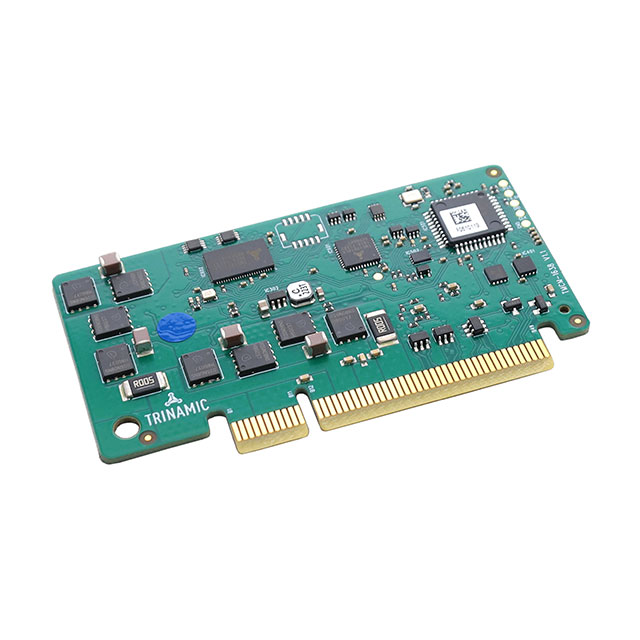

TMCM-1638-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 7A 10-52V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1638-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 7A 10-52V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1638-TMCL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 7 A |
| Interface | CAN, SPI, RS-485 |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Load [Max] | 52 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 52 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 285.26 | |
TMCM-1638 Series
STEPPER DRIVER 7A 10-52V
| Part | Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Motor Type | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Current - Output | Control / Drive Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1638-TMCL | Board | 52 V | 10 VDC | CAN, RS-485, SPI | Stepper | Chassis Mount | 10 V | 52 V | 7 A | Bipolar, Stepper | -30 ░C | 60 °C |
Description
General part information
TMCM-1638 Series
Stepper, Bipolar 10 ~ 52VDC Supply 7A 10 ~ 52V Load
