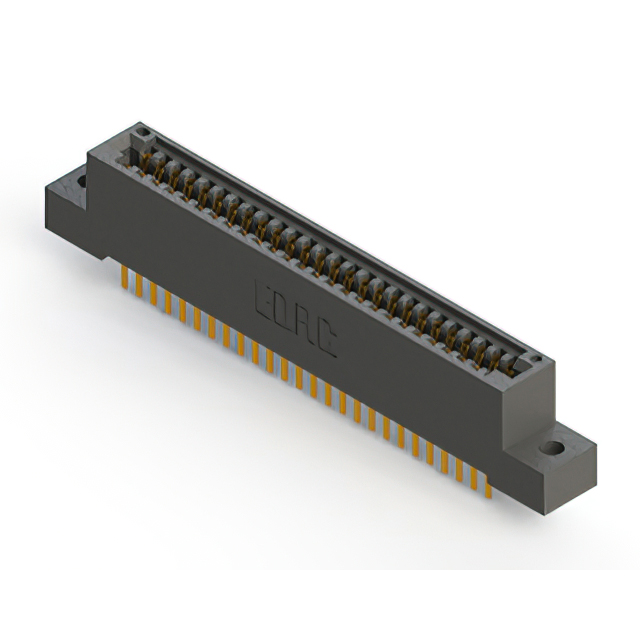

CONN EDGE DUAL FMALE 52POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-052-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-052-520-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-052 Series
...
| Part | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions | Termination | Read Out | Color | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Card Type | Gender | Features | Number of Rows | Flange Feature | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Board Edge Straddle Mount | 26 | 52 | Solder | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | Card Extender | 2 | M3 Threaded Insert Top Mount Opening | 2 | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 26 | 52 | Solder | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | 2 | Flush Mount Top Opening Unthreaded | 2 | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 26 | 52 | Wire Wrap | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | 2 | Floating Bobbin Top Mount Opening | 2 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 26 | 52 | Wire Wrap | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | 2 | Side Mount Opening Unthreaded | 2 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 26 | 52 | Solder | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | 2 | Floating Bobbin Top Mount Opening | 2 | 2.95 mm | 0.116 in | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 26 | 52 | Wire Wrap | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | 2 | 4-40 Threaded Insert Top Mount Opening | 2 | |||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 52 | 52 | Solder Eyelet(s) | Single | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Female | 1 | 1 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 26 | 52 | Solder | Dual | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Dual Edge | Female | 2 | Top Mount Opening Unthreaded | 2 | 3.96 mm | 0.156 in | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 52 | 52 | Wire Wrap | Single | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Female | 1 | Top Mount Opening Unthreaded | 1 | 3.96 mm | 0.156 in | |||
EDAC Inc. | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Through Hole | 52 | 52 | Wire Wrap | Single | Black | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Non Specified - Single Edge | Female | 1 | 4-40 Threaded Insert Top Mount Opening | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
