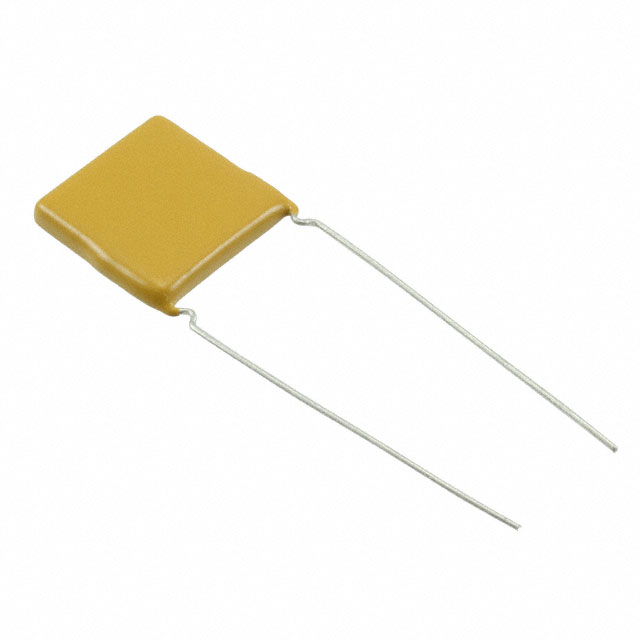

C668C105KDR5TA

Active

KEMET

CAPACITOR,CERAMIC,1UF,1KVDC,10-% TOL,10+% TOL,X7R-TC CODE,-15,15%-TC

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,CERAMIC,1UF,1KVDC,10-% TOL,10+% TOL,X7R-TC CODE,-15,15%-TC

Technical Specifications

Parameters and characteristics for this part

Part	Temperature Coefficient	Applications	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Package / Case	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Lead Style	Voltage - Rated	Voltage - Rated
KEMET C668C105KDR5TA	X7R	General Purpose	1 µF	0.271 "	0.77 in	19.56 mm	6.89 mm	17.14 mm	0.675 in	Radial	High Voltage	0.94 in	23.87 mm	Through Hole	10 %	-55 °C	125 °C	Formed Leads	1 kV	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial
