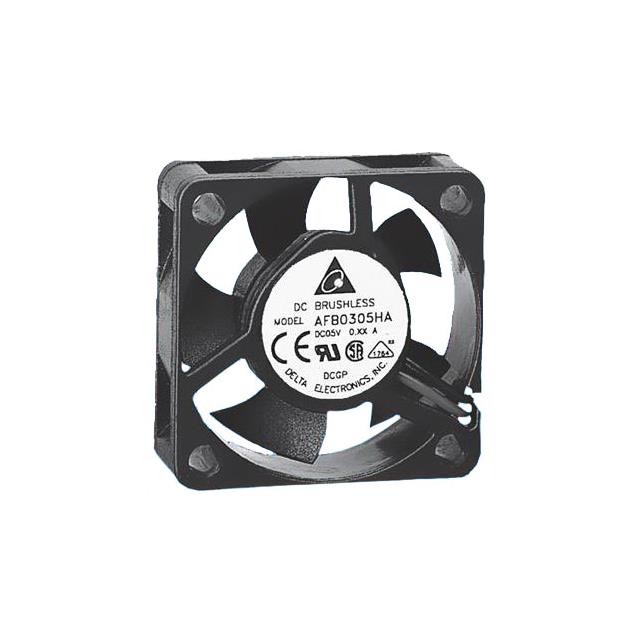

AFB03505MA-CF00

Active

Delta Electronics

FAN AXIAL 35X10MM BALL 5VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 35X10MM BALL 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AFB03505MA-CF00

Air Flow	4.3 CFM
Air Flow	0.12 m³/min
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	16 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.5 W
RPM	5800 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	0.076 in H2O
Static Pressure	18.9 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Weight	10.43 g
Weight	0.023 lb
Width [y]	10 mm

Part	Material - Blade	Weight	Weight	Current Rating (Amps)	Bearing Type	Static Pressure	Static Pressure	Fan Type	RPM	Lifetime @ Temp.	Voltage - Rated	Noise	Termination	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Features	Air Flow	Air Flow	Power (Watts)	Air Flow	Approval Agency
Delta Electronics AFB03505MA-CF00	Plastic	10.43 g	0.023 lb	100 mA	Ball	0.076 in H2O	18.9 Pa	Tubeaxial	5800 RPM	30000 Hrs	5 V	16 dB	3 Wire Leads	35 mm	35 mm	10 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	4 VDC	5.5 V	Locked Rotor Protection Speed Sensor (Tach)	4.3 CFM	0.12 m³/min	0.5 W
Delta Electronics AFB03505LA-C	Plastic	10.89 g	0.024 lb	60 mA	Ball	0.048 in H2O	11.9 Pa	Tubeaxial	4500 RPM	30000 Hrs	5 V	10 dB(A)	2 Wire Leads	35 mm	35 mm	10 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	4 VDC	5.5 V		3.4 CFM	0.095 m³/min	300 mW
Delta Electronics AFB03505HA-A	Plastic	10.89 g	0.024 lb	140 mA	Ball	0.106 in H2O	26.4 Pa	Tubeaxial	7000 RPM	30000 Hrs	5 V	22 dB(A)	2 Wire Leads	35 mm	35 mm	10 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	4 VDC	5.5 V			5.5 CFM	700 mW	0.154 m³/min	CE CSA UL VDE
Delta Electronics AFB03505MA-C	Plastic	10.43 g	0.023 lb	100 mA	Ball	0.076 in H2O	18.9 Pa	Tubeaxial	5800 RPM	30000 Hrs	5 V	16 dB	2 Wire Leads	35 mm	35 mm	10 mm	70 °C	70 °C	-10 °C	-10 °C	Plastic	4 VDC	5.5 V		4.3 CFM	0.12 m³/min	0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	576	$ 9.29

General part information

Fan Tubeaxial 5VDC Square - 35mm L x 35mm H Ball 4.3 CFM (0.120m³/min) 3 Wire Leads
