A89303KETSR-J
ActiveAllegro MicroSystems
THREE-PHASE SENSORLESS FAN DRIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A89303KETSR-J
ActiveAllegro MicroSystems
THREE-PHASE SENSORLESS FAN DRIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A89303KETSR-J |
|---|---|
| Function | Driver - Fully Integrated, Control and Power Stage |
| Grade | Automotive |
| Interface | I2C, PWM |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Mounting Type | Wettable Flank, Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (3) |

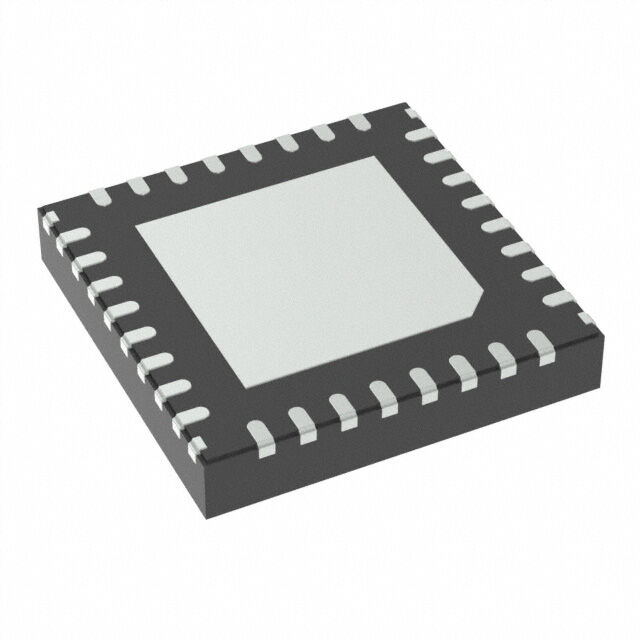

| Package / Case | 32-VFQFN Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 32-QFN (5x5) |
| Technology | Power MOSFET |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.61 | |
| 5 | $ 3.22 | |||
| 10 | $ 3.08 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.80 | |||
| 100 | $ 2.69 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.40 | |||
| Digi-Reel® | 1 | $ 3.61 | ||
| 5 | $ 3.22 | |||
| 10 | $ 3.08 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.80 | |||
| 100 | $ 2.69 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.40 | |||
| Tape & Reel (TR) | 6000 | $ 2.03 | ||
Description
General part information
A89303 Series
Multiphase Motor Driver Power MOSFET I2C, PWM 32-QFN (5x5)
