SMP-MSLD-PCR

Active

Amphenol RF

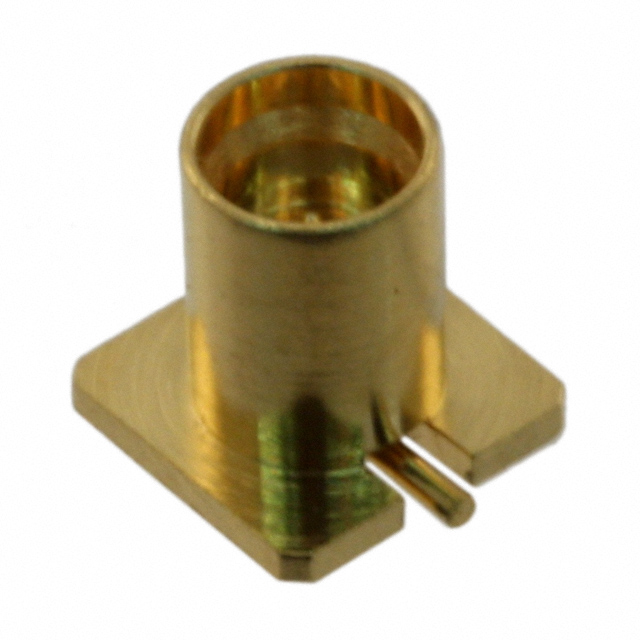

CONNECTOR: COAXIAL; SOCKET; MALE; SMP; SMT; ON PCBS; STRAIGHT; BRASS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-MSLD-PCR

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	12 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

SMP-MSSB Series

Part	Housing Color	Center Contact Material	Body Material	Impedance	Frequency - Max [Max]	Shield Termination	Dielectric Material	Mounting Type	Cable Group	Connector Type	Contact Termination	Center Contact Plating	Number of Ports	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Includes [custom]	Includes [custom]	Includes [custom]	Features	Mating Cycles	Cable Group	Includes	Mounting Feature	Connector Style
Amphenol RF SMP-FR-C19	Silver	Beryllium Copper	Beryllium Copper	50 Ohms	26.5 GHz	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	RG-178	Male Pin Plug	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On	1 pcs	1 pcs	1 pcs
Amphenol RF SMP-MSCM-PCS-12	Gold	Brass	Brass	50 Ohms	20 GHz	Solder	Liquid Crystal Polymer (LCP)	Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-40 °C	165 °C	Snap-On				Catcher's Mitt	500
Amphenol RF SMP-MSLD-PCT19T	Gold	Brass	Brass	50 Ohms	20 GHz	Solder	Liquid Crystal Polymer (LCP)	Through Hole		Jack Male Pin	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Limited Detent	500
Amphenol RF SMP-MSSB-PCE-4T	Gold	Beryllium Copper	Brass	50 Ohms	26.5 GHz	Solder	Polytetrafluoroethylene (PTFE)	Board Edge Cutout Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	500
Amphenol RF SMP-MSLD-PCS20T	Gold	Brass	Brass	50 Ohms	20 GHz	Solder	Liquid Crystal Polymer (LCP)	Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-40 °C	85 °C	Snap-On				Limited Detent	500
Amphenol RF SMP-MSSB-PCR	Gold	Beryllium Copper	Brass	50 Ohms	12 GHz	Solder		Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	1000
Amphenol RF SMP-MSSB-PCT	Gold	Brass	Brass	50 Ohms	6000 MHz	Solder		Through Hole		Male Pin Receptacle	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	500
Amphenol RF SMP-FR-C06	Gold	Beryllium Copper	Beryllium Copper	50 Ohms	26.5 GHz	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Semi Rigid	Female Socket Plug	Solder	Gold	1	Gold	-65 ░C	155 °C	Snap-On						0.047 in	1 Connector 1 End Cap
Amphenol RF SMP-MSSB-PCT-1	Gold	Brass	Brass	50 Ohms	18 GHz	Solder	Liquid Crystal Polymer (LCP)	Surface Mount		Male Pin Receptacle	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	1000
Amphenol RF SMP-MSFD-CSB	Gold	Brass	Brass	50 Ohms	26.5 GHz	Push On	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)		Jack Male Pin	Solder	Gold	1	Gold	-55 °C	165 °C					Full Detent				Bulkhead	HD SMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.20
		10	$ 12.59
		25	$ 12.10
		50	$ 11.62
		100	$ 10.97
		300	$ 10.01
		500	$ 9.36
		1000	$ 8.59
TME	N/A	100	$ 22.57
		500	$ 22.05

Description

General part information

SMP-MSSB Series

SMP Connector Jack, Male Pin 50 Ohms Surface Mount Solder
