SMP-MSFD-CSB

Active

Amphenol RF

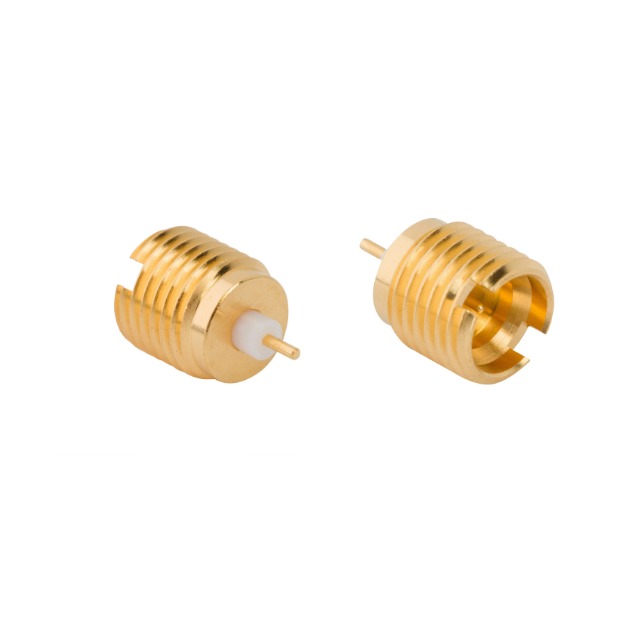

RF / COAXIAL CONNECTOR, SMP COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN

SMP-MSFD-CSB

Active

Amphenol RF

RF / COAXIAL CONNECTOR, SMP COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BRASS

Deep-Dive with AI

DocumentsProduct Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMP-MSFD-CSB

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	HD, SMP
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Full Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Feature	Bulkhead
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Push On

SMP-MSSB Series

Part	Housing Color	Center Contact Material	Body Material	Impedance	Frequency - Max [Max]	Shield Termination	Dielectric Material	Mounting Type	Cable Group	Connector Type	Contact Termination	Center Contact Plating	Number of Ports	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Includes [custom]	Includes [custom]	Includes [custom]	Features	Mating Cycles	Cable Group	Includes	Mounting Feature	Connector Style
Amphenol RF SMP-FR-C19	Silver	Beryllium Copper	Beryllium Copper	50 Ohms	26.5 GHz	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	RG-178	Male Pin Plug	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On	1 pcs	1 pcs	1 pcs
Amphenol RF SMP-MSCM-PCS-12	Gold	Brass	Brass	50 Ohms	20 GHz	Solder	Liquid Crystal Polymer (LCP)	Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-40 °C	165 °C	Snap-On				Catcher's Mitt	500
Amphenol RF SMP-MSLD-PCT19T	Gold	Brass	Brass	50 Ohms	20 GHz	Solder	Liquid Crystal Polymer (LCP)	Through Hole		Jack Male Pin	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Limited Detent	500
Amphenol RF SMP-MSSB-PCE-4T	Gold	Beryllium Copper	Brass	50 Ohms	26.5 GHz	Solder	Polytetrafluoroethylene (PTFE)	Board Edge Cutout Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	500
Amphenol RF SMP-MSLD-PCS20T	Gold	Brass	Brass	50 Ohms	20 GHz	Solder	Liquid Crystal Polymer (LCP)	Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-40 °C	85 °C	Snap-On				Limited Detent	500
Amphenol RF SMP-MSSB-PCR	Gold	Beryllium Copper	Brass	50 Ohms	12 GHz	Solder		Surface Mount		Jack Male Pin	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	1000
Amphenol RF SMP-MSSB-PCT	Gold	Brass	Brass	50 Ohms	6000 MHz	Solder		Through Hole		Male Pin Receptacle	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	500
Amphenol RF SMP-FR-C06	Gold	Beryllium Copper	Beryllium Copper	50 Ohms	26.5 GHz	Solder	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Semi Rigid	Female Socket Plug	Solder	Gold	1	Gold	-65 ░C	155 °C	Snap-On						0.047 in	1 Connector 1 End Cap
Amphenol RF SMP-MSSB-PCT-1	Gold	Brass	Brass	50 Ohms	18 GHz	Solder	Liquid Crystal Polymer (LCP)	Surface Mount		Male Pin Receptacle	Solder	Gold	1	Gold	-65 ░C	165 °C	Snap-On				Smooth Bore	1000
Amphenol RF SMP-MSFD-CSB	Gold	Brass	Brass	50 Ohms	26.5 GHz	Push On	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)		Jack Male Pin	Solder	Gold	1	Gold	-55 °C	165 °C					Full Detent				Bulkhead	HD SMP
