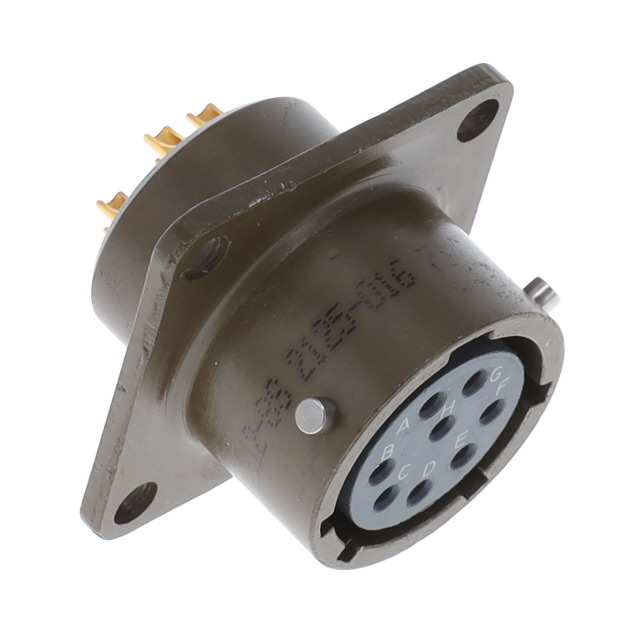

MS3112E12-8S

Active

ITT Cannon, LLC

CONN RCPT 8POS BOX MNT W/SCKT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT 8POS BOX MNT W/SCKT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E12-8S

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	12-8
Voltage Rating	600 VAC, 850 V

Part	Ingress Protection	Mounting Feature	Primary Material	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Orientation	Number of Positions	Voltage Rating	Fastening Type	Connector Type	Color	Shell Finish	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
ITT Cannon, LLC MS3112E12-8S	Environment Resistant	Flange	Metal	Gold	7.5 A	-55 °C	125 °C	12-8	N	8	600 VAC 850 V	Bayonet Lock	Receptacle Female Sockets	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	1.27 µm	50 µin
ITT Cannon, LLC MS3112E12-10P	Environment Resistant	Flange	Metal	Gold	7.5 A	-55 °C	125 °C		N	10	600 VAC 850 V	Bayonet Lock	Male Pins Receptacle	Olive Drab	Olive Drab Cadmium	Aluminum Alloy	1.27 µm	50 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
