Q1689ABD

Active

Hoffman Enclosures, Inc.

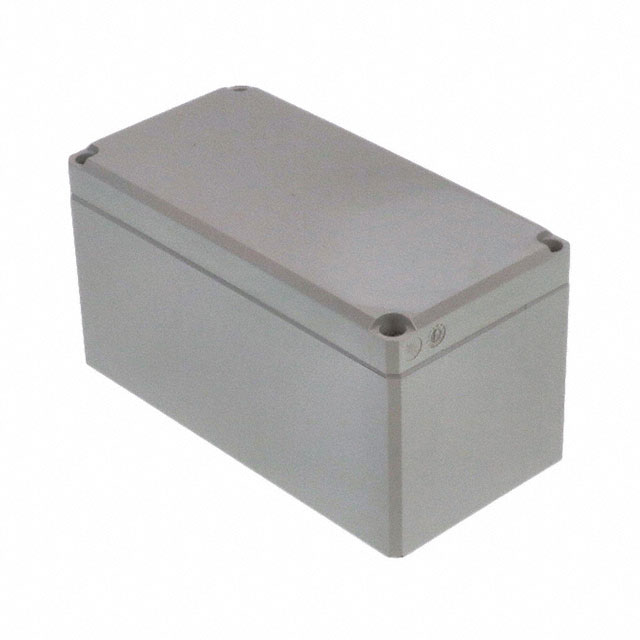

BOX ABS GRAY 6.3"L X 3.15"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX ABS GRAY 6.3"L X 3.15"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q1689ABD

Area (L x W)	128 cm˛
Area (L x W)	19.8 in˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	3.386 in
Height [z]	86 mm
Material	Plastic, ABS
Ratings	4X, 12, IP67, 13, UL-508A, NEMA 4, 6
Size / Dimension [x]	160 mm
Size / Dimension [x]	6.299 "
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Thickness	3 mm
Thickness	0.118 in
Weight	0.58 lb
Weight	263.08 g

Part	Ratings	Features	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Thickness	Thickness	Design	Color	Container Type	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material
Hoffman Enclosures, Inc. Q1689ABD	12 13 4X 6 IP67 NEMA 4 UL-508A	PCB Supports Sealing Gasket Wall Mount	128 cm˛	19.8 in˛	3.386 in	86 mm	3 mm	0.118 in	Cover Included	Gray	Box	0.58 lb	263.08 g	80 mm	160 mm	3.15 in	6.299 "	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Cover Included 6.299" L x 3.150" W (160.00mm x 80.00mm) X 3.386" (86.00mm)
