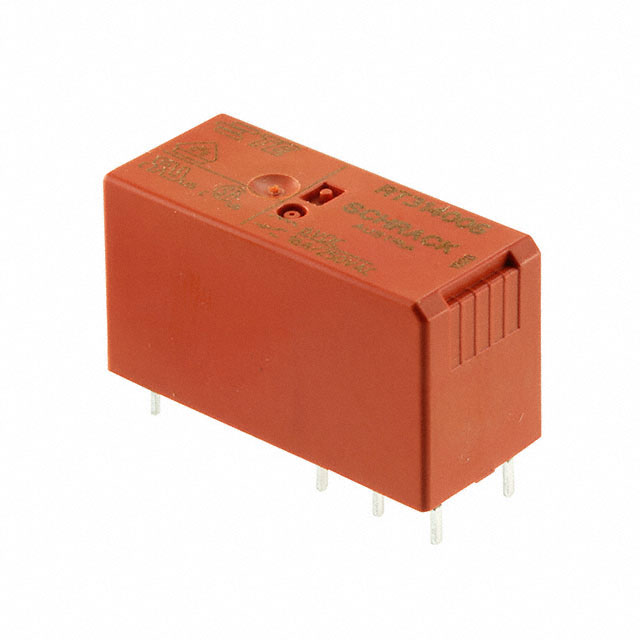

RT314006

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 6V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 6V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage [Max]	Must Release Voltage	Mounting Type	Termination Style	Load - Max Switching	Contact Rating (Current)	Coil Resistance	Relay Type	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Must Operate Voltage	Seal Rating	Approval Agency	Contact Form	Coil Insulation	Contact Material	Coil Current	Operate Time	Release Time
TE Connectivity Potter & Brumfield Relays RT314012F	400 VAC	1.2 VDC	Through Hole	PC Pin	6400 VA	16 A	360 Ohms	General Purpose	Non Latching	85 °C	-40 °C	12 VDC	8.4 VDC	Sealed - Flux Protection	CQC CSA cURus VDE	SPDT (1 Form C)	Class F	Silver Nickel (AgNi)	33.3 mA	8 ms	6 ms
TE Connectivity Potter & Brumfield Relays RT314012	400 VAC	1.2 VDC	Through Hole	PC Pin	6400 VA	16 A	360 Ohms	General Purpose	Non Latching	85 °C	-40 °C	12 VDC	8.4 VDC	Sealed - Flux Protection	CQC CSA cURus VDE	SPDT (1 Form C)	Class F	Silver Nickel (AgNi)	14.2 mA	8 ms	6 ms
TE Connectivity Potter & Brumfield Relays RT314006	400 VAC	0.6 VDC	Through Hole	PC Pin	6400 VA	16 A	90 Ohms	General Purpose	Non Latching	85 °C	-40 °C		4.2 VDC	Sealed - Flux Protection	CQC CSA cURus VDE	SPDT (1 Form C)	Class F	Silver Nickel (AgNi)	14.2 mA	8 ms	6 ms
TE Connectivity Potter & Brumfield Relays RT314060	400 VAC	6 VDC	Through Hole	PC Pin	6400 VA	16 A	8.57 kOhms	General Purpose	Non Latching	85 °C	-40 °C	60 VDC	42 VDC	Sealed - Flux Protection	CQC CSA cURus VDE	SPDT (1 Form C)	Class F	Silver Nickel (AgNi)	14.2 mA	8 ms	6 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 6VDC Coil Through Hole
