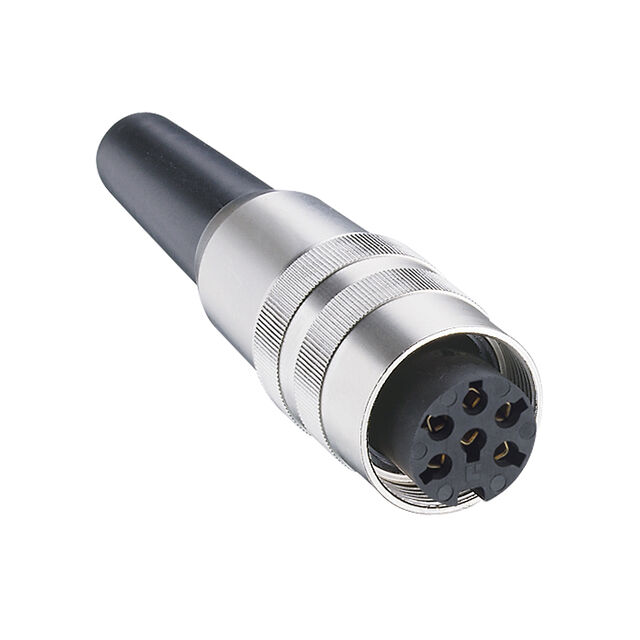

KV 60

Active

LUMBERG

IP40 SOCKET CABLEMOUNT SOLDER

Search across all available documentation for this part.

Active

LUMBERG

IP40 SOCKET CABLEMOUNT SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KV 60	- Series

Accessory Type	-	Cap (Cover), Protective, Wrench
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Silver, Gold	Silver, Gold
Features	Strain Relief	Strain Relief, Chain, M16, Ground Contact
For Use With/Related Products	-	03 Series Plug
Ingress Protection	IP40	IP40, IP68
Material Flammability Rating	UL94	UL94
Mounting Type	Free Hanging (In-Line), Cable Mount	Free Hanging (In-Line), Cable Mount
Number of Positions	6	4 - 8
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Tin
Shell Material	Zinc Alloy	Zinc Alloy
Shell Size - Insert	M16	M16
Termination	Solder	Solder

CONNECTOR ACCESSORY, SLIT NUT, CIRCULAR CONNECTORS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Shell Material	Primary Material	Shell Size - Insert	Ingress Protection	Mounting Type	Number of Positions	Color	Termination	Connector Type	Material Flammability Rating	Contact Finish - Mating	Features	For Use With/Related Products	Accessory Type
LUMBERG 0385	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16
LUMBERG KV 60	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	6	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG SV 71	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	7	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG 0381						M16				Silver						03 Series Plug	Cap (Cover), Protective
LUMBERG SV 80	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	8	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG 0383						M16				Silver					Chain	03 Series Plug	Cap (Cover), Protective
LUMBERG KV 70	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	7	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG KV 80	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	8	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG SV 81	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	8	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG SV 70	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	7	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Male Pins Solder
