0383

Active

LUMBERG

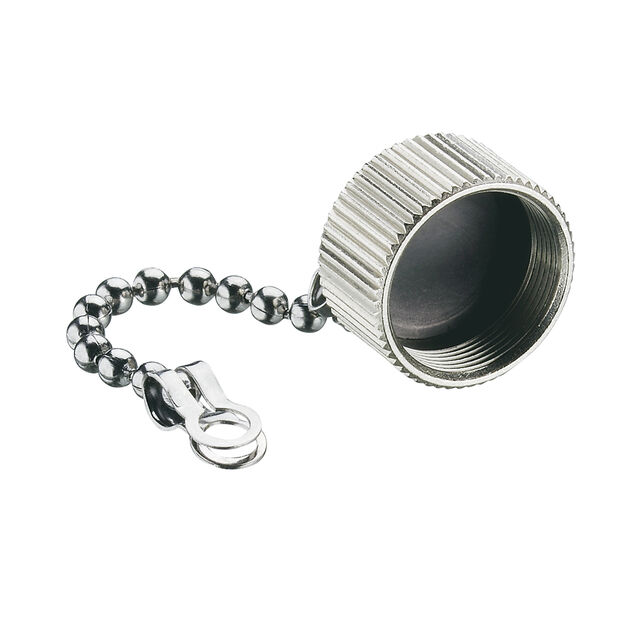

DUST CAP / COVER, PLUG, CAP, CIRCULAR CONNECTORS, BRASS BODY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LUMBERG

DUST CAP / COVER, PLUG, CAP, CIRCULAR CONNECTORS, BRASS BODY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0383	- Series

Accessory Type	Cap (Cover), Protective	Cap (Cover), Protective, Wrench
Color	Silver	Silver
Connector Type	-	Plug, Male Pins
Contact Finish - Mating	-	Silver, Gold
Features	Chain	Strain Relief, Chain, M16, Ground Contact
For Use With/Related Products	03 Series Plug	03 Series Plug
Ingress Protection	-	IP40, IP68
Material Flammability Rating	-	UL94
Mounting Type	-	Free Hanging (In-Line), Cable Mount
Number of Positions	-	4 - 8
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Primary Material	-	Metal
Shell Finish	-	Nickel, Tin
Shell Material	-	Zinc Alloy
Shell Size - Insert	M16	M16
Termination	-	Solder

CONNECTOR ACCESSORY, SLIT NUT, CIRCULAR CONNECTORS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Shell Material	Primary Material	Shell Size - Insert	Ingress Protection	Mounting Type	Number of Positions	Color	Termination	Connector Type	Material Flammability Rating	Contact Finish - Mating	Features	For Use With/Related Products	Accessory Type
LUMBERG 0385	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16
LUMBERG KV 60	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	6	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG SV 71	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	7	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG 0381						M16				Silver						03 Series Plug	Cap (Cover), Protective
LUMBERG SV 80	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	8	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG 0383						M16				Silver					Chain	03 Series Plug	Cap (Cover), Protective
LUMBERG KV 70	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	7	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG KV 80	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	8	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG SV 81	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	8	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief
LUMBERG SV 70	85 °C	-40 °C	Nickel	Zinc Alloy	Metal	M16	IP40	Cable Mount, Free Hanging (In-Line)	7	Silver	Solder	Male Pins, Plug	UL94	Gold, Silver	Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover), Protective M16 Silver
