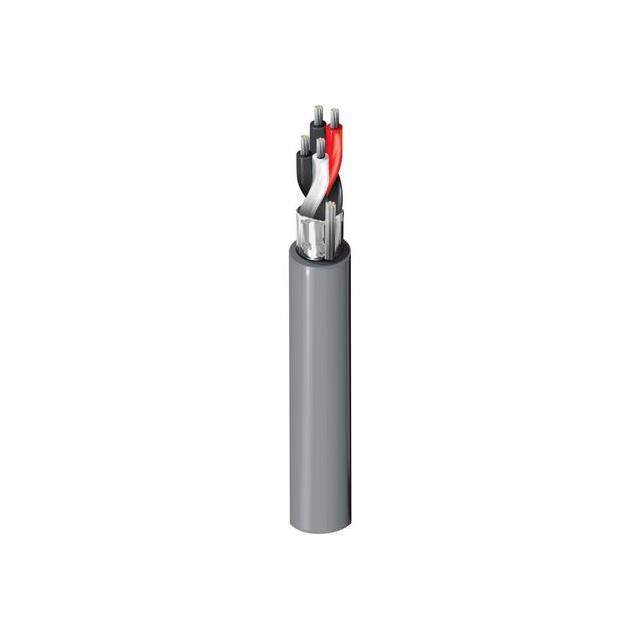

8132FO 0601000

Active

Belden Inc.

MULTI-PAIR 4COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8132FO 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	28 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length	Length	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Number of Conductors	Ratings	Shield Material	Conductor Insulation	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Coverage	Conductor Material
Belden Inc. 8132FO 0601000	36 AWG	7	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Computer	0.889 mm	0.035 in	Foil	Chrome	-30 ░C	80 C	Multi-Pair	4	UL Style 2919	Aluminum	Foam Polyethylene (FPE)	Drain Wire	5.46 mm	0.215 in	28 AWG	100 %	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.37

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil 1000.0' (304.8m)
