1.30.076.101/0000

Active

RAFI USA

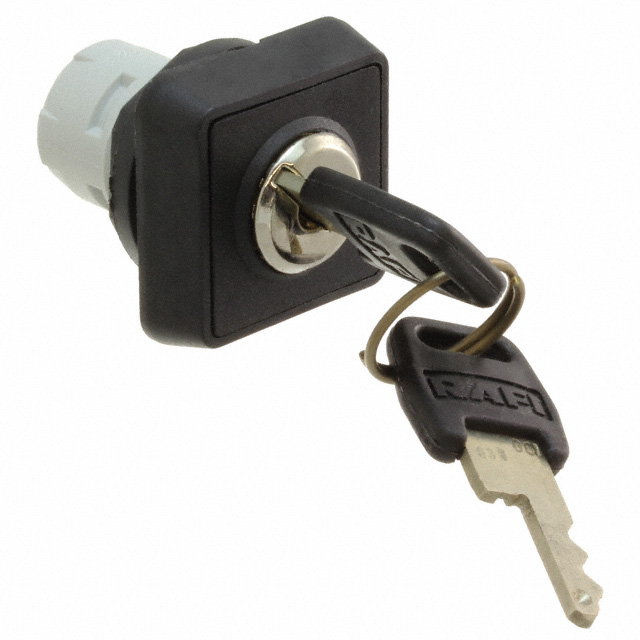

CONFIG SW BODY KEYLOCK NON-ILLUM

Search across all available documentation for this part.

Active

RAFI USA

CONFIG SW BODY KEYLOCK NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.076.101/0000

(Select First, Then Apply Filters) Compatible Series	Rafix 16
Actuator Type	Keylock
Illumination	Non-Illuminated
Panel Cutout Dimensions	16.2 mm
Requires	Contact Block(s)
Type	Maintained

Part	Type	Panel Cutout Dimensions	Actuator Type	Requires	(Select First, Then Apply Filters) Compatible Series	Illumination
RAFI USA 1.30.076.721/0000	Momentary	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.121/0000	Maintained	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.441/0000	Maintained	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.041/0000	Maintained	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.521.0000	Momentary	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.141/0000	Maintained	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.541/0000	Momentary	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.052/0000
RAFI USA 1.30.076.301/0000	Maintained	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated
RAFI USA 1.30.076.101/0000	Maintained	16.2 mm	Keylock	Contact Block(s)	Rafix 16	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Keylock Non-Illuminated
