1717 SL002

Active

ALPHA WIRE

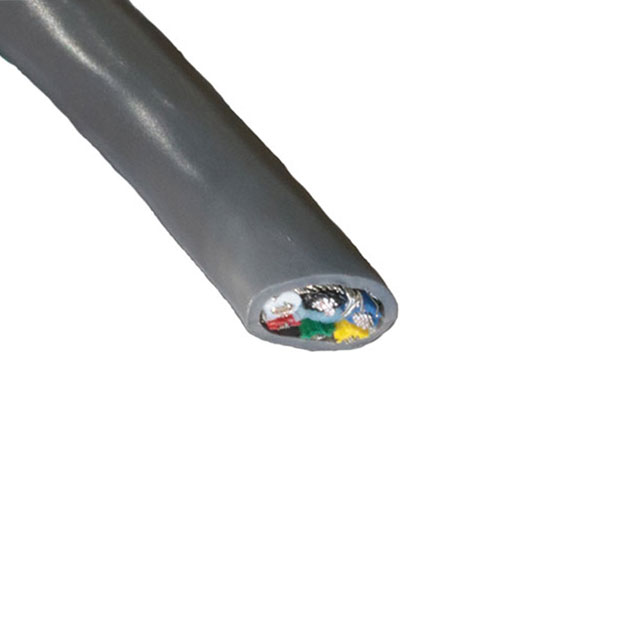

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 6 CONDUCTOR, 20 AWG, 0.52 MM², 500 FT, 152.4 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 6 CONDUCTOR, 20 AWG, 0.52 MM², 500 FT, 152.4 M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1717 SL002	1717 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	34 AWG, 26	26 - 34 AWG
Jacket (Insulation) Diameter [diameter]	7.77 mm	7.77 mm
Jacket (Insulation) Diameter [diameter]	0.306 in	0.306 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm	0.889 mm
Jacket (Insulation) Thickness	0.035 in	0.035 in
Jacket Color	Slate	Slate
Length [x]	500 '	100 - 500 ft
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	6	6
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	85 %	85 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	20 AWG	20 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 6 CONDUCTOR, 20 AWG, 0.52 MM², 100 FT, 30.5 M

Part	Conductor Material	Shield Material	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Shield Coverage	Cable Type	Wire Gauge	Usage	Jacket Color
ALPHA WIRE 1717 SL005	Copper, Tinned	Copper, Tinned	Poly-Vinyl Chloride (PVC)	600 V	0.889 mm	0.035 in	Polyethylene (PE)	26, 34 AWG	6	7.77 mm	0.306 in	30.5 m	100 ft	-20 C	60 °C	Braid	85 %	Multi-Conductor	20 AWG	Communication, Control	Slate
ALPHA WIRE 1717 SL002	Copper, Tinned	Copper, Tinned	Poly-Vinyl Chloride (PVC)	600 V	0.889 mm	0.035 in	Polyethylene (PE)	26, 34 AWG	6	7.77 mm	0.306 in	152.4 m	500 '	-20 C	60 °C	Braid	85 %	Multi-Conductor	20 AWG	Communication, Control	Slate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 3212.29
Newark	Spool of 500	1	$ 3669.80

General part information

6 Conductor Multi-Conductor Cable Slate 20 AWG Braid 500.0' (152.4m)
