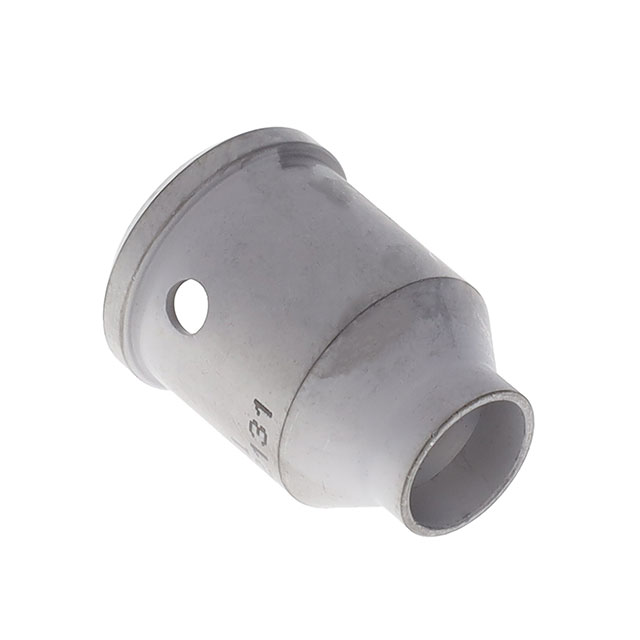

M85049/33-1-10

Active

AMPHENOL PCD

CONN BACKSHELL SZ10

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN BACKSHELL SZ10

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/33-1-10

Cable Exit	180 °
For Use With/Related Products	MIL-DTL-38999 Series I, II
Material	Aluminum
Shell Size - Insert	10
Shielding	Unshielded
Type	Backshell

Part	Type	Shell Size - Insert	Shielding	Cable Exit	For Use With/Related Products	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Color
AMPHENOL PCD M85049/33-1-24	Backshell	24	Unshielded	180 °	MIL-DTL-38999 Series I II	Aluminum
AMPHENOL PCD M85049/33-1-10	Backshell	10	Unshielded	180 °	MIL-DTL-38999 Series I II	Aluminum
AMPHENOL PCD M85049/33-2-16W	Backshell	16 17	Unshielded	180 °	MIL-DTL-38999 Series I II	Aluminum Alloy	1.25 in	31.75 mm	Cadmium	Olive Drab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Backshell 10
