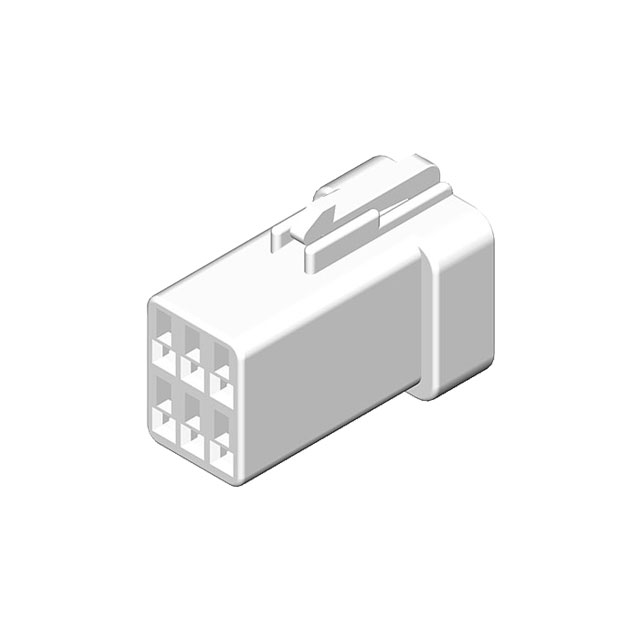

CPB206SDR00

Active

Cvilux USA

CONN RCPT HSG 6POS 2.00MM

Search across all available documentation for this part.

Active

Cvilux USA

CONN RCPT HSG 6POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	CPB206SDR00

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm

CONN RCPT HSG 6POS 2.00MM

Part	Number of Positions	Number of Rows	Mounting Type	Connector Type	Contact Type	Fastening Type	Features	Contact Termination	Note	Color	Pitch [x]	Pitch [x]	Insulation Material
Cvilux USA CPB206SDR00	6	2	Free Hanging (In-Line)	Receptacle	Female Socket	Friction Lock	Sealed	Crimp	Contacts Not Included	Natural	0.079 in	2 mm	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
