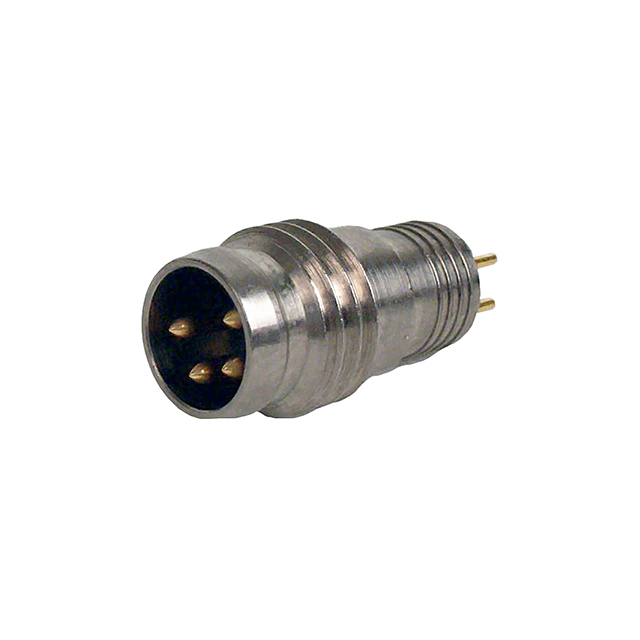

614PCCM

Active

Switchcraft Inc.

CONN M8 CIRCULAR PIN 4 POS SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT BOX

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN M8 CIRCULAR PIN 4 POS SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT BOX

Technical Specifications

Parameters and characteristics for this part

CONN M8 CIRCULAR PIN 4 POS SOLDER ST THRU-HOLE 4 TERMINAL 1 PORT BOX

Part	Mounting Type	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Termination	Ingress Protection	Connector Type	Color	Fastening Type	Current Rating (Amps)	Shell Finish	Number of Positions	Primary Material	Voltage Rating
Switchcraft Inc. 614PCCM	Panel Mount, Through Hole	Brass	-20 C	105 ░C	M8-4	Solder	IP67/IP68 - Dust Tight, Waterproof	Male Pins, Receptacle	Silver	Snap-In, Threaded	3 A	Nickel	4	Metal	50 VAC, 60 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	4	$ 9.64
Digikey	Bulk	1	$ 11.03
		10	$ 8.48

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
