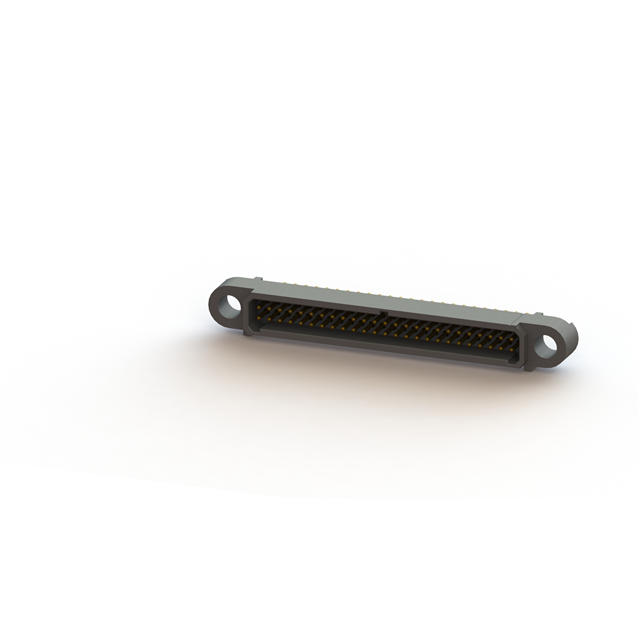

A221Y50VXX

Active

MALE 50POS STRAIGHT TRGH 1.27MM

Active

MALE 50POS STRAIGHT TRGH 1.27MM

Description

General part information

Connector Header Through Hole 50 position 0.039" (1.00mm)

Parameters and characteristics for this part

Specification	A221Y50VXX

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	2.5 A
Fastening Type	Push-Pull
Features	Mating Flange
Insulation Color	Black
Insulation Height	0.161 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.039 in
Row Spacing - Mating	0.039 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	600 V

Part	Number of Positions Loaded	Number of Rows	Contact Finish - Mating	Style	Contact Type	Insulation Material	Contact Shape	Shrouding	Contact Finish Thickness - Mating	Mounting Type	Connector Type	Termination	Contact Material	Contact Finish - Post	Pitch - Mating	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Fastening Type	Current Rating	Row Spacing - Mating	Voltage Rating	Insulation Color	Number of Positions	Features	Contact Finish Thickness - Post
Nicomatic A221Y50V22	All	2	Gold	Board Board or Cable	Male Pin	Liquid Crystal Polymer (LCP)	Circular	Shrouded - 4 Wall	5.9 µin	Through Hole	Header	Solder	Copper Alloy	Gold	0.039 in	0.161 in	200 °C	-65 °C	UL94 V-0	Screw Lock	2.5 A	0.039 in	600 V	Black	50	Mating Flange Mounting Flange Mounting Hardware	5.9 µin
Nicomatic A221Y50VXX	All	2	Gold	Board Board or Cable	Male Pin	Liquid Crystal Polymer (LCP)	Circular	Shrouded - 4 Wall	5.9 µin	Through Hole	Header	Solder	Copper Alloy	Gold	0.039 in	0.161 in	200 °C	-65 °C	UL94 V-0	Push-Pull	2.5 A	0.039 in	600 V	Black	50	Mating Flange	5.9 µin
