DP1RD20JQ1R400

Obsolete

JAE Electronics

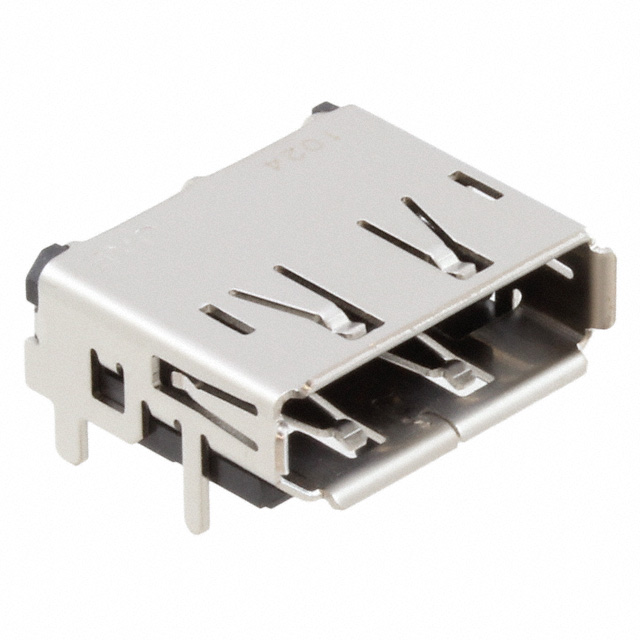

CONN RCP 1.1A DISPLAYPORT SMD RA

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN RCP 1.1A DISPLAYPORT SMD RA

Technical Specifications

Parameters and characteristics for this part

Specification	DP1RD20JQ1R400

Connector Type	DisplayPort
Contact Finish	Gold
Current Rating (Amps)	500 mA
Features	Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Copper Alloy
Shielding	Unshielded
Specifications	Display Port 1.1a
Termination	Solder

Part	Insulation Color	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Mounting Type	Features	Connector Type	Specifications	Mounting Feature	Shell/Shielding Material	Mating Cycles	Number of Ports	Material Flammability Rating	Contact Finish	Gender	Termination
JAE Electronics DP1RD20JQ2R400	Black	500 mA	85 °C	-20 C	Unshielded	Surface Mount Right Angle	Solder Retention	DisplayPort	Display Port 1.1a	Horizontal Reverse Mount	Copper Alloy	10000	1	UL94 V-0	Gold	Receptacle	Solder
JAE Electronics DP1RD20JQ1R400	Black	500 mA	85 °C	-20 C	Unshielded	Surface Mount Right Angle	Board Guide	DisplayPort	Display Port 1.1a	Horizontal	Copper Alloy	10000	1	UL94 V-0	Gold	Receptacle	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DisplayPort Display Port 1.1a Receptacle Connector 20 Position Surface Mount, Right Angle
