336314-12-0250

Active

Amphenol RF

CBL ASSY AMC-RPSMA JCK-PL 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

336314-12-0250

Active

Amphenol RF

CBL ASSY AMC-RPSMA JCK-PL 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	336314-12-0250

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC)
Style	AMC to RP-SMA

336314 Series

Part	Overall Impedance	1st Connector Mounting Feature	2nd Contact Gender	Length [x]	Length [x]	1st Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Style	Style	2nd Connector	1st Connector	Cable Type [diameter]	2nd Connector Mounting Type	Color	Cable Type
Amphenol RF 336314-14-0150	50 Ohms	Bulkhead - Front Side Nut	Female	150 mm	5.906 "	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack	1.37 mm	Free Hanging (In-Line)	Black
Amphenol RF 336314-14-0250	50 Ohms	Bulkhead - Front Side Nut	Female	250 mm	9.843 "	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack	1.37 mm	Free Hanging (In-Line)	Black
Amphenol RF 336314-13-0300	50 Ohms	Bulkhead - Front Side Nut	Female	300 mm	11.811 in	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.32mm OD Coaxial Cable
Amphenol RF 336314-13-0050	50 Ohms	Bulkhead - Front Side Nut	Female	50 mm	1.969 in	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.32mm OD Coaxial Cable
Amphenol RF 336314-13-0150	50 Ohms	Bulkhead - Front Side Nut	Female	150 mm	5.906 "	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.32mm OD Coaxial Cable
Amphenol RF 336314-13-0250	50 Ohms	Bulkhead - Front Side Nut	Female	250 mm	9.843 "	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.32mm OD Coaxial Cable
Amphenol RF 336314-12-0150	50 Ohms	Bulkhead - Front Side Nut	Female	150 mm	5.906 "	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.13mm OD Coaxial Cable
Amphenol RF 336314-12-0250	50 Ohms	Bulkhead - Front Side Nut	Female	250 mm	9.843 "	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.13mm OD Coaxial Cable
Amphenol RF 336314-12-0100	50 Ohms	Bulkhead - Front Side Nut	Female	0.1 m	3.937 in	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.13mm OD Coaxial Cable
Amphenol RF 336314-12-0300	50 Ohms	Bulkhead - Front Side Nut	Female	300 mm	11.811 in	Male	Panel Mount	6000 MHz	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	RP-SMA Jack		Free Hanging (In-Line)	Black	1.13mm OD Coaxial Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.18
		10	$ 10.12
		25	$ 9.15
		50	$ 8.49
		100	$ 7.89
		300	$ 7.06
		500	$ 6.71
		1000	$ 6.28

Description

General part information

336314 Series

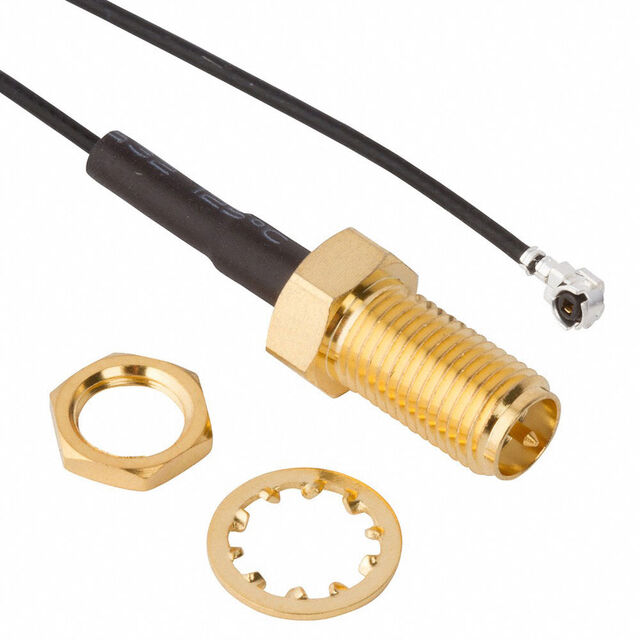

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-SMA 1.13mm OD Coaxial Cable 9.843" (250.00mm)
