AS1369-BWLT-15

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.5V 200MA 4WLCSP

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

IC REG LINEAR 1.5V 200MA 4WLCSP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS1369-BWLT-15	AS1369 Series

Control Features	Enable	Enable
Current - Output	200 mA	200 mA
Current - Quiescent (Iq)	50 çA	50 çA
Current - Supply (Max) [Max]	60 µA	60 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Protection Features	Over Current, Over Temperature	Over Current, Over Temperature
PSRR [Max]	72 dB	72 dB
PSRR [Min]	55 dB	55 dB

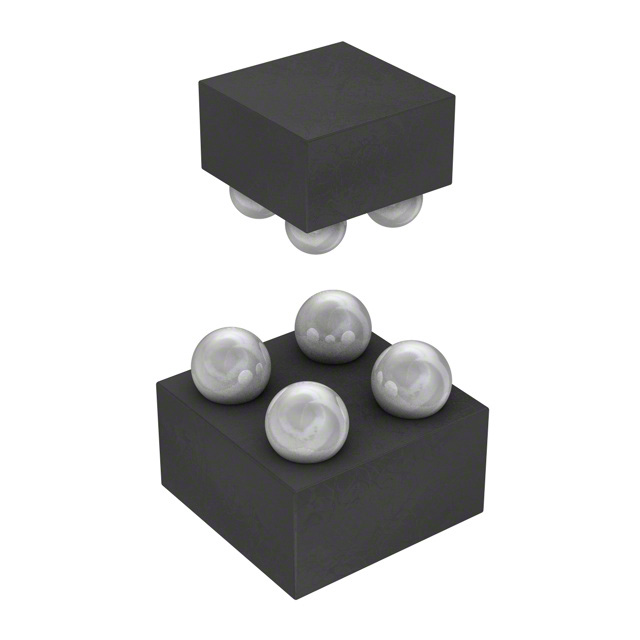

Supplier Device Package	4-WLCSP	4-WLCSP
Supplier Device Package [x]	0.97	0.97
Supplier Device Package [y]	0.97	0.97
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Output (Min/Fixed)	1.5 V	1.5 V
Voltage Dropout (Max) [Max]	0.2 V	0.2 V

IC REG LINEAR 1.5V 200MA 4WLCSP

Part	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Output Configuration	Output Type	Number of Regulators	Voltage - Input (Max) [Max]	PSRR [Min]	PSRR [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Control Features	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Protection Features	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]
ams-OSRAM USA INC. AS1369-BWLT-15	60 µA	1.5 V	Positive	1.81 mOhm	1	5.5 V	55 dB	72 dB	Surface Mount	125 °C	-40 °C	200 mA	Enable	0.97	0.97	4-WLCSP	Over Current, Over Temperature	50 çA	0.2 V
ams-OSRAM USA INC. AS1369-BWLT-30-10K	60 µA		Positive	1.81 mOhm	1	5.5 V			Surface Mount	125 °C	-40 °C	200 mA	Enable	0.97	0.97	4-WLCSP	Over Current, Over Temperature	50 çA	0.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-WLCSP (0.97x0.97)
