FC1-15-02-T-WT

Active

Samtec Inc.

CONN FFC 15POS 1MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FC1 Datasheet +1

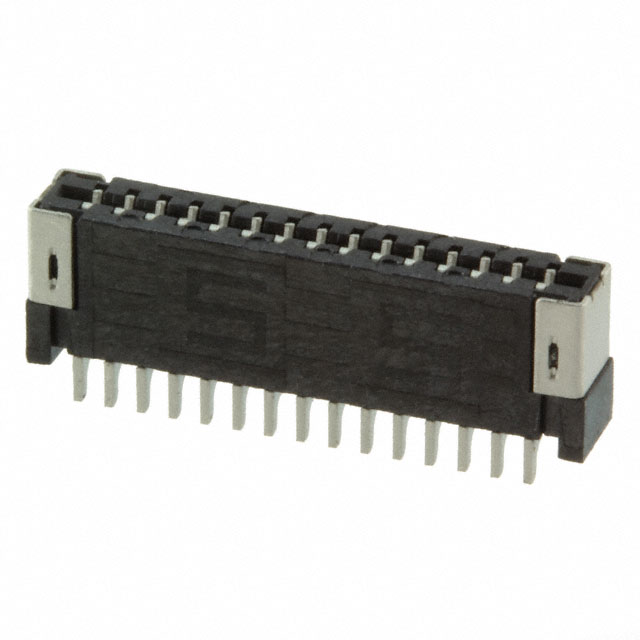

FC1-15-02-T-WT

Active

Samtec Inc.

CONN FFC 15POS 1MM R/A

Deep-Dive with AI

DocumentsDatasheet FC1 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FC1-15-02-T-WT

Cable End Type	Straight
Connector/Contact Type	Contacts, Top and Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	2 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	25
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder

FC1-15 Series

Part	Housing Material	Number of Positions	Mounting Type	Contact Material	Contact Finish	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	FFC, FCB Thickness	Housing Color	Pitch [x]	Pitch [x]	Connector/Contact Type	Current Rating (Amps)	Features	Cable End Type	Termination	Height Above Board	Height Above Board [z]
Samtec Inc. FC1-15-L2-T	Liquid Crystal Polymer (LCP)	15	Surface Mount Right Angle	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Top and Bottom	2 A	Low Insertion Force (LIF) Solder Retention	Straight	Solder
Samtec Inc. FC1-15-L2-T-WT	Liquid Crystal Polymer (LCP)	15	Surface Mount Right Angle	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Top and Bottom	2 A	Low Insertion Force (LIF) Solder Retention	Straight	Solder
Samtec Inc. FC1-15-L1-T-LC	Liquid Crystal Polymer (LCP)	15	Surface Mount	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Vertical - 2 Sided	2 A	Board Lock Low Insertion Force (LIF) Solder Retention	Straight	Solder	5.18 mm	0.204 in
Samtec Inc. FC1-15-L1-TM-K	Liquid Crystal Polymer (LCP)	15	Surface Mount	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Vertical - 2 Sided	2 A	Low Insertion Force (LIF) Pick and Place Cap Solder Retention	Straight	Solder	5.18 mm	0.204 in
Samtec Inc. FC1-15-L1-TM-K-TR	Liquid Crystal Polymer (LCP)	15	Surface Mount	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Vertical - 2 Sided	2 A	Low Insertion Force (LIF) Pick and Place Cap Solder Retention	Straight	Solder	5.18 mm	0.204 in
Samtec Inc. FC1-15-L1-T	Liquid Crystal Polymer (LCP)	15	Surface Mount	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Vertical - 2 Sided	2 A	Low Insertion Force (LIF) Solder Retention	Straight	Solder	5.18 mm	0.204 in
Samtec Inc. FC1-15-01-TM-LC	Liquid Crystal Polymer (LCP)	15	Surface Mount	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Vertical - 2 Sided	2 A		Straight	Solder	5.18 mm	0.204 in
Samtec Inc. FC1-15-L2-TM-WT	Liquid Crystal Polymer (LCP)	15	Surface Mount Right Angle	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Top and Bottom	2 A	Low Insertion Force (LIF) Solder Retention	Straight	Solder
Samtec Inc. FC1-15-02-T-WT	Liquid Crystal Polymer (LCP)	15	Surface Mount Right Angle	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Top and Bottom	2 A	Solder Retention	Straight	Solder
Samtec Inc. FC1-15-01-T	Liquid Crystal Polymer (LCP)	15	Surface Mount	Phosphor Bronze	Tin	FFC	105 ░C	-55 °C	25	0.3 mm	Black	0.039 in	1 mm	Contacts Vertical - 2 Sided	2 A		Straight	Solder	5.18 mm	0.204 in
