Q-0J0420003036i

Active

Amphenol Custom Cable

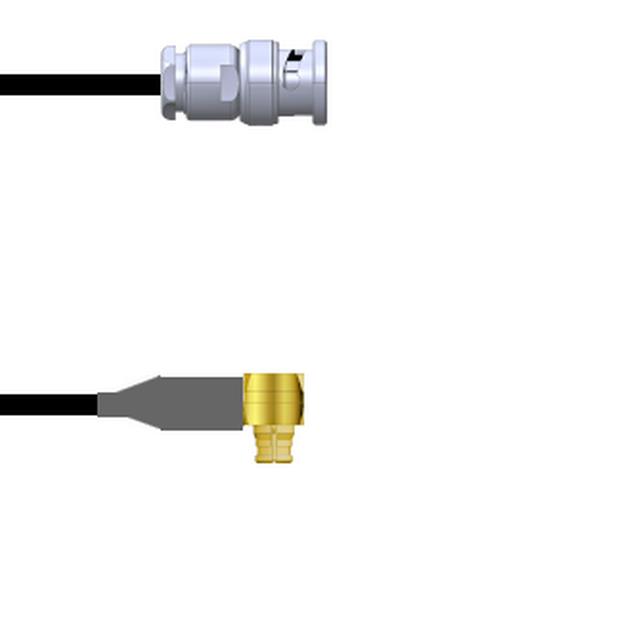

CBL ASSY BNC-SMP PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0J0420003036i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMP PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0J0420003036i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMP Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	BNC to SMP

Q-0J0420 Series

Part	1st Connector Mounting Type	Length	Length	Length	1st Contact Gender	Overall Impedance	Cable Type	Style	Color	2nd Contact Gender	Frequency - Max [Max]	1st Connector	2nd Connector	Features	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0J04200031.5M	Free Hanging (In-Line)	59.1 in	4.9 ft	1.5 m	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003060i	Free Hanging (In-Line)	5 '	5 ft	1.5 m	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003018i	Free Hanging (In-Line)				Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0J04200030.5M	Free Hanging (In-Line)	19.69 "		50 cm	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003003i	Free Hanging (In-Line)	3 in		76.2 mm	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003024i	Free Hanging (In-Line)	24 "		609.6 mm	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003048i	Free Hanging (In-Line)	48 in	4 ft	1200 mm	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003002M	Free Hanging (In-Line)	78.7 in	6.6 ft	2 m	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003003M	Free Hanging (In-Line)	118.1 in	9.8 '	3 m	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0J0420003036i	Free Hanging (In-Line)	36 in		91.44 cm	Male	50 Ohms	RG-174	BNC to SMP	Black	Male	4 GHz	BNC Plug	SMP Plug Right Angle	Shielded	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 95.24
		25	$ 93.38
		50	$ 91.52
		100	$ 89.67
		250	$ 87.81

Description

General part information

Q-0J0420 Series

Cable Assembly Coaxial BNC to SMP RG-174 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
