HDB-D4-120M022X

Active

Amphenol Aerospace Operations

DAUGHTER CARD 120POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

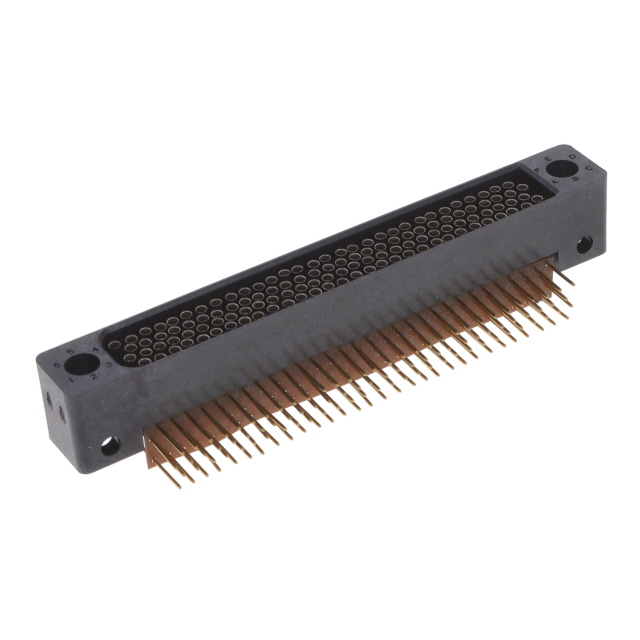

HDB-D4-120M022X

Active

Amphenol Aerospace Operations

DAUGHTER CARD 120POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-D4-120M022X

Color	Black
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	2 A
Features	Jackscrew
Mounting Type	Through Hole, Right Angle
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.07 in
Pitch [x]	1.78 mm
Termination	Solder

HDB-D4 Series

Part	Connector Type	Number of Rows	Number of Columns	Pitch [x]	Pitch [x]	Features	Termination	Contact Finish	Color	Connector Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Number of Positions	Connector Usage
Amphenol Aerospace Operations HDB-D4-060M042X	Receptacle Female Sockets	6	10	0.07 in	1.78 mm	Jackscrew	Solder	Gold	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	0.76 Ám	30 Áin	All	60	Daughtercard
Amphenol Aerospace Operations HDB-D4-060M032X	Receptacle Female Sockets	6	10	0.07 in	1.78 mm	Jackscrew	Solder	Gold	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	0.76 Ám	30 Áin	All	60	Daughtercard
Amphenol Aerospace Operations HDB-D4-080M042X	Receptacle Female Sockets	8	10	0.07 in	1.78 mm	Jackscrew	Solder	Gold	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	0.76 Ám	30 Áin	All	80	Daughtercard
Amphenol Aerospace Operations HDB-D4-120M042X	Receptacle Female Sockets	12	10	0.07 in	1.78 mm	Jackscrew	Solder	Gold	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	0.76 Ám	30 Áin	All	120	Daughtercard
Amphenol Aerospace Operations HDB-D4-120M022X	Receptacle Female Sockets	12	10	0.07 in	1.78 mm	Jackscrew	Solder	Gold	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	0.76 Ám	30 Áin	All	120	Daughtercard
Amphenol Aerospace Operations HDB-D4-120M026X	Receptacle Female Sockets	12	10	0.07 in	1.78 mm	Jackscrew	Solder	Tin-Lead	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	2.54 µm	100 µin	All	120	Daughtercard
Amphenol Aerospace Operations HDB-D4-120M036X	Receptacle Female Sockets	12	10	0.07 in	1.78 mm	Jackscrew	Solder	Tin-Lead	Black	High Density (HDC HDI HPC)	2 A	125 °C	-65 ░C	Through Hole Right Angle	2.54 µm	100 µin	All	120	Daughtercard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 540.16
		10	$ 426.31
		25	$ 390.49

Description

General part information

HDB-D4 Series

120 Connector Receptacle, Female Sockets Through Hole, Right Angle Black High Density (HDC, HDI, HPC)
