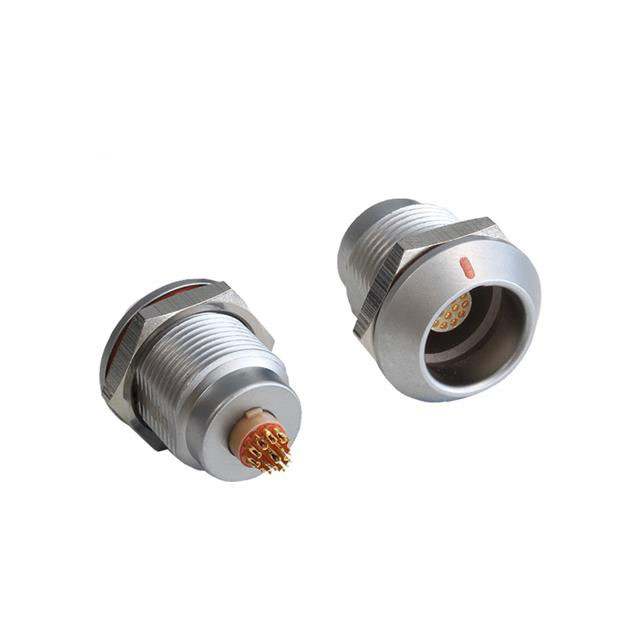

Specification	PPCEGG1K14CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Material	Phosphor Bronze
Current Rating	2 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP66
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	14
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-50 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Shielded
Termination	Solder Cup

PPCEGG Series

Part	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Number of Positions	Contact Finish Thickness - Mating	Color	Termination	Connector Type	Contact Material	Shell Finish	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Current Rating	Mounting Type	Shielding	Contact Finish - Mating	Primary Material	Mounting Feature
BULGIN LIMITED PPCEGG3B22CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	22	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Protected	IP50	Brass	5.5 A	Panel Mount	Shielded	Gold	Metal
BULGIN LIMITED PPCEGG3K20CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	20	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Tight Water Resistant	IP66	Brass	6 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG3K12CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	12	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Tight Water Resistant	IP66	Brass	9 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG1B08CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	8	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Protected	IP50	Brass	5 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG2B03CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	3	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Protected	IP50	Brass	17 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG1K07CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	7	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Tight Water Resistant	IP66	Brass	7 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG2K14CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	14	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Tight Water Resistant	IP66	Brass	6.5 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG2B07CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	7	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Protected	IP50	Brass	11 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG1K14CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	14	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Tight Water Resistant	IP66	Brass	2 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
BULGIN LIMITED PPCEGG2B08CLL	G	200 °C	-50 °C	Polyphenylene Sulfide PPS	8	3 µin	Silver	Solder Cup	Female Sockets Receptacle	Phosphor Bronze	Chrome	Push-Pull	Dust Protected	IP50	Brass	10 A	Panel Mount	Shielded	Gold	Metal	Bulkhead Rear Side Nut
