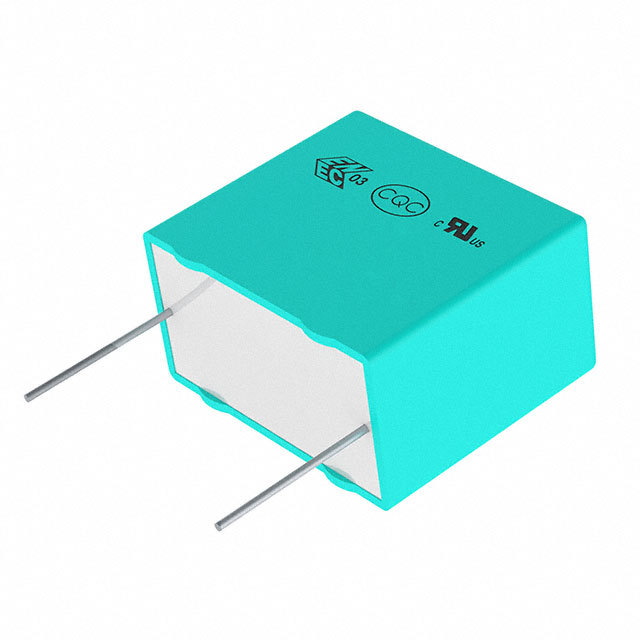

F862DO474K310Z

Active

KEMET

CAP FILM 0.47UF 10% 630VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.47UF 10% 630VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	F862DO474K310Z

Applications	EMI, RFI Suppression, Automotive
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	18.5 mm
Height - Seated (Max) [Max]	0.728 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension [x]	26 mm
Size / Dimension [x]	1.024 in
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V

Part	Mounting Type	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Ratings	Tolerance	Voltage Rating - AC
KEMET F862DO474K310ZLH0J	Through Hole	PC Pins	26 mm	0.394 in	10 mm	1.024 in	EMI RFI Suppression	-40 °C	110 °C	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	18.5 mm	0.728 in	0.47 µF	X2	10 %	310 V
KEMET F862DO474K310Z	Through Hole	PC Pins	26 mm	0.394 in	10 mm	1.024 in	Automotive EMI RFI Suppression	-40 °C	110 °C	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	18.5 mm	0.728 in	0.47 µF	AEC-Q200 X2	10 %	310 V
KEMET F862DO474K310ZV054	Through Hole	PC Pins	26 mm	0.394 in	10 mm	1.024 in	Automotive EMI RFI Suppression	-40 °C	110 °C	Metallized Polypropylene (PP)	Radial	22.5 mm	0.886 in	18.5 mm	0.728 in	0.47 µF	AEC-Q200 X2	10 %	310 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
