82-5590-RFX

Active

Amphenol RF

CONN N TWIN RCPT STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N TWIN RCPT STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	82-5590-RFX

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	Twinaxial, N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polybutylene Terephthalate (PBT)
Housing Color	Silver
Impedance	Non-Constant

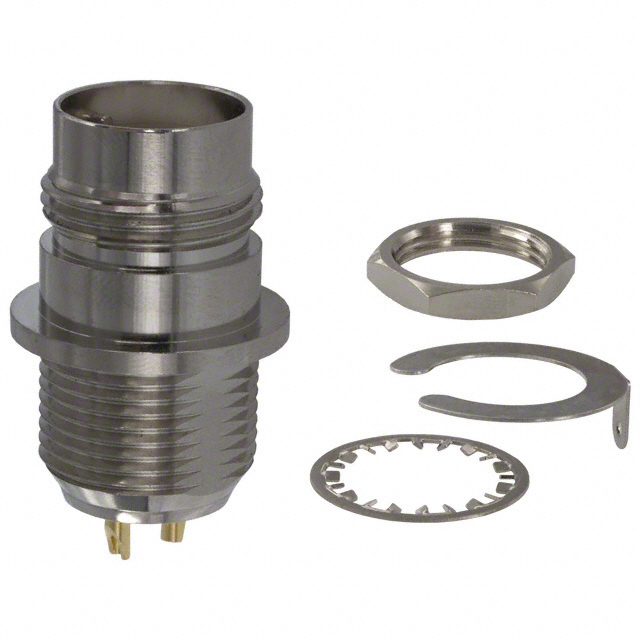

Includes	1 Nut, 1 Solder Tag, 1 Connector, 1 Lockwasher
Ingress Protection	Weatherproof
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Shield Termination	Solder Tag
Voltage Rating	500 V

Part	Connector Style	Center Contact Plating	Includes	Contact Termination	Body Material	Dielectric Material	Housing Color	Impedance	Mounting Feature	Shield Termination	Voltage Rating	Connector Type	Center Contact Material	Body Finish	Number of Ports	Ingress Protection
Amphenol RF 82-5590-RFX	N Type Twinaxial	Gold	1 Connector 1 Lockwasher 1 Nut 1 Solder Tag	Solder Cup	Brass	Polybutylene Terephthalate (PBT)	Silver	Non-Constant	Bulkhead - Rear Side Nut	Solder Tag	500 V	Female Socket Receptacle	Phosphor Bronze	Nickel	1	Weatherproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type, Twinaxial Connector Receptacle, Female Socket Non-Constant Panel Mount Solder Cup
